31
4 Visualization
4.3 Curve Presentation
For this type of display one distinguishes between vertical and horizontal pre-
sentation. Only one of the two presentation types can be active for all groups.
v Configuration
Î Screen Î Show diagrams
v Configuration
Î Screen Î Diagram display

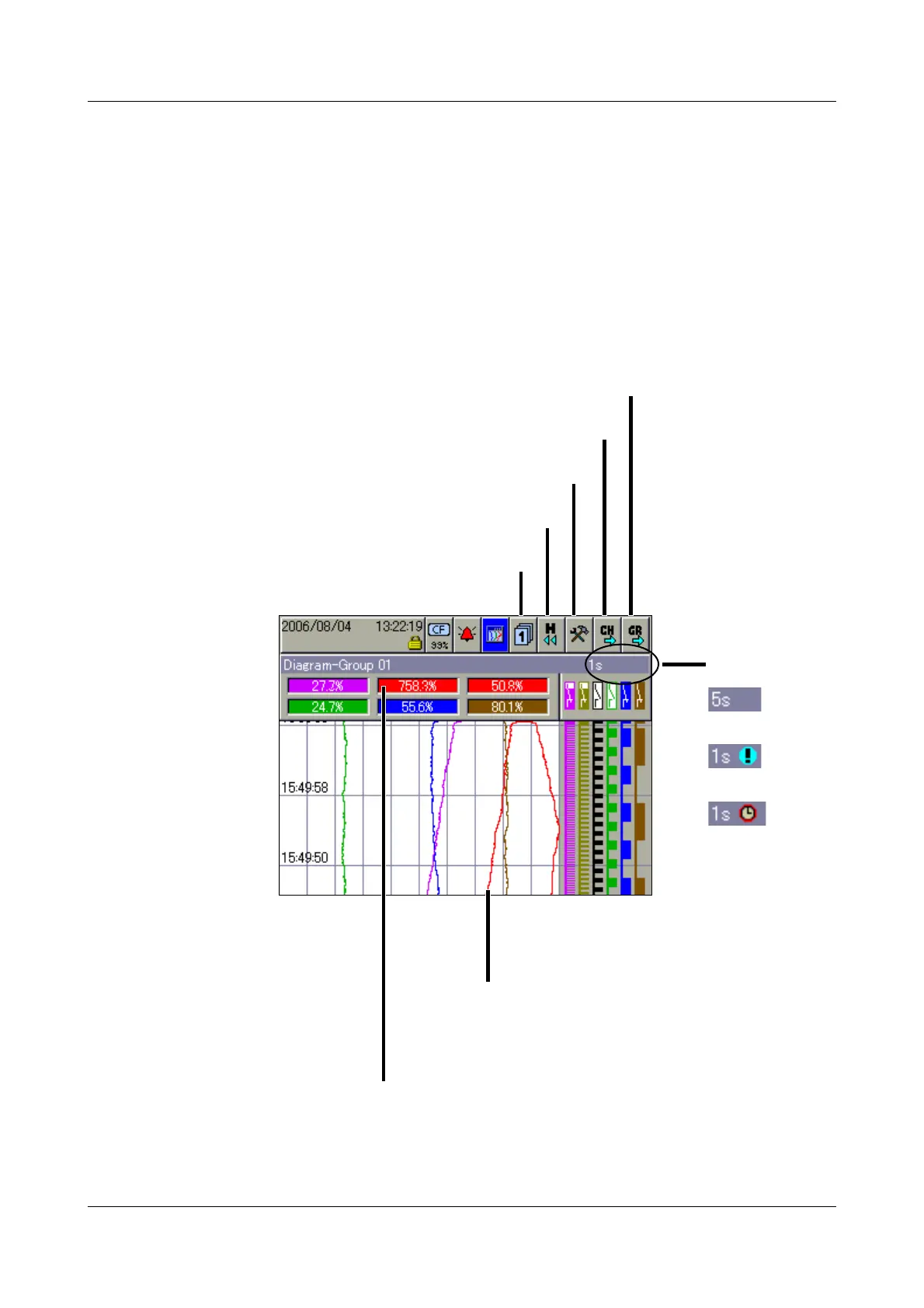

4.3.1 Vertical presentation
In the display, signals are continuously displayed on the screen running from
top to bottom.
Group selection You can use this function to directly select and display any one of the groups.
Group selection
Memory presentation
Numerical measurement display
(diagram view)
Channel step-on
Group step-on
Sampling rate
and
oper. mode:
=
Normal mode
=
Event mode
=
Timed mode
An alarm (Alarm 1 or Alarm 2) is
indicated by an orange or a red background. The
colors can be configured in the setup program.
An alarm (Alarm 1 or Alarm 2) is
indicated by a red or orange curve color.
The colors can be configured in the
setup program.
