4 Visualization
34

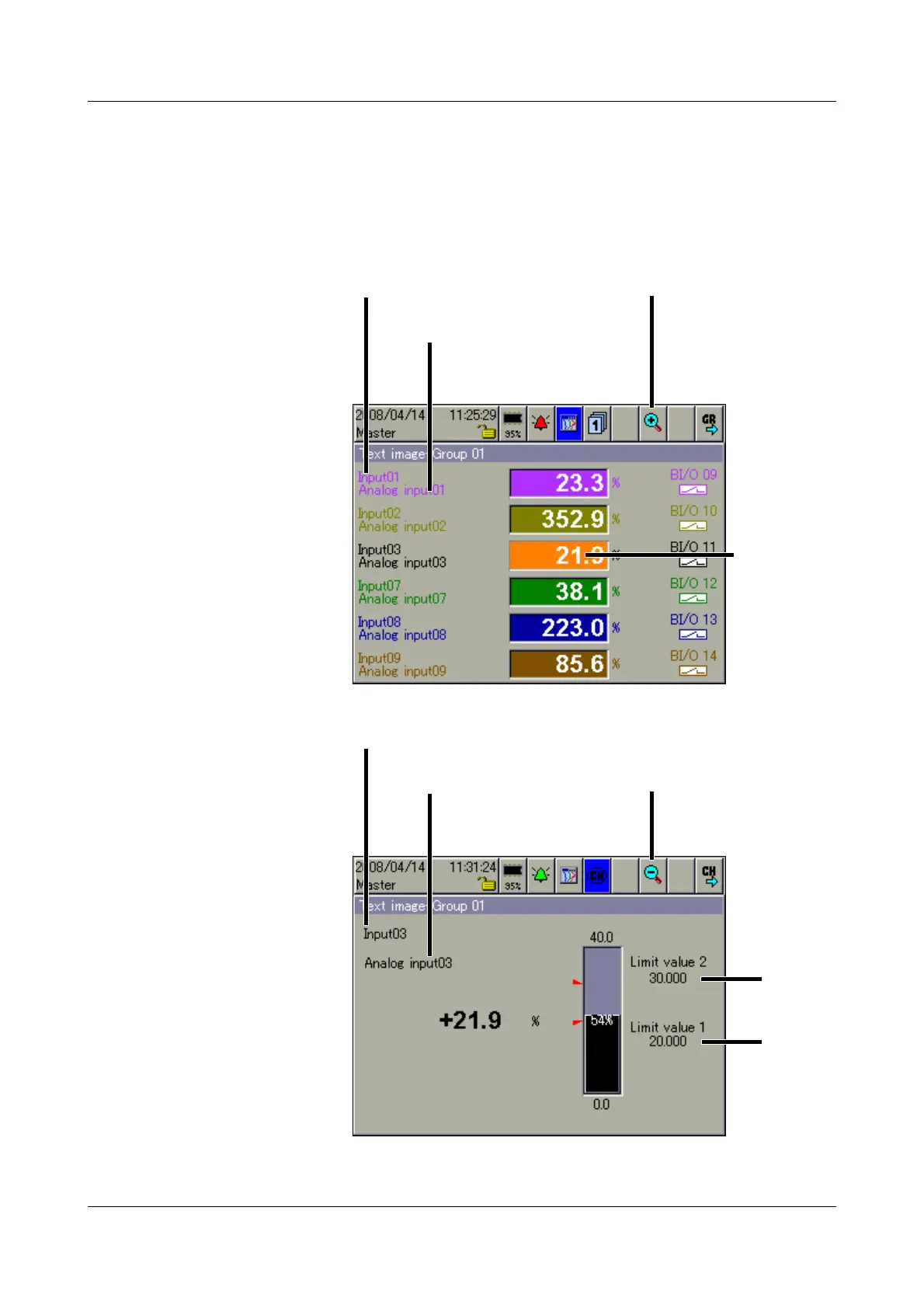

4.5 Text Picture Presentation
In the presentation, the analog channels are presented numerically, together
with the channel name and the channel description. In addition to the analog
channels, the digital inputs can also be visualized at the right-hand edge of the
display.
Group
presentation
1-channel
presentation
Channel description
Channel name
Changeover to
1-channel
presentation
An alarm (Alarm 1 or Alarm 2) is
indicated by an orange or red background.
The colors can be configured in the setup
program.
Channel description
Channel name
Changeover to group
presentation
Programmable
alarm limits
