3.3 Group and Plant Management (Batches)

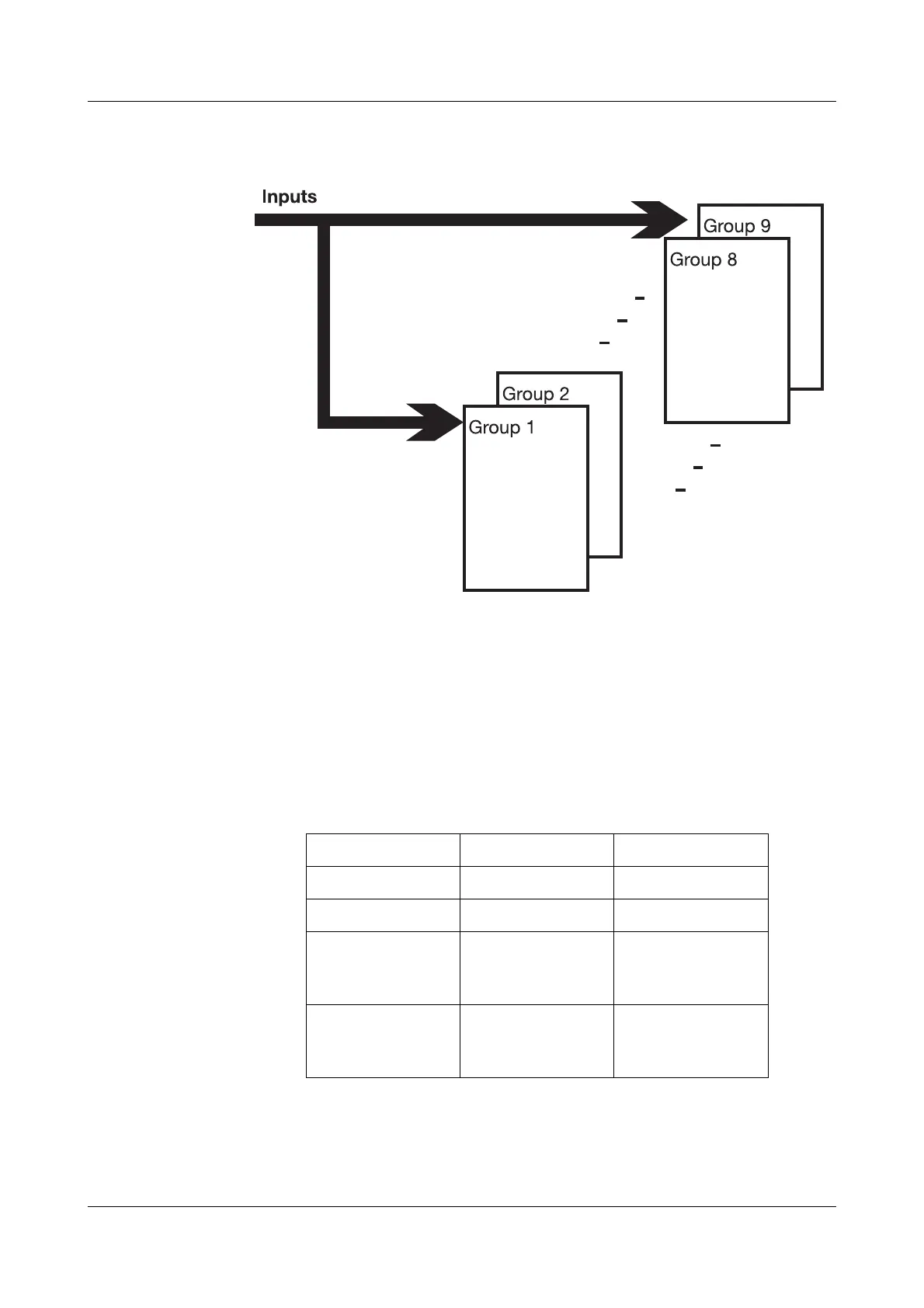

Within the recorder, all analog inputs, binary inputs, counters and integrators,
are collected together into groups. A maximum of nine groups is available as a
total. Each group can consist of a maximum of 6 analog inputs, 6 binary inputs
(or outputs), and 4 counters/integrators.
The visualization and storage of the analog inputs and binary inputs (outputs)
is always made on a group basis.
If plants (batches) are used, the groups have fixed assignments to the plants
(batches).
Plant number Group Plant (batch)
01…9None
11…91
21…3
4…6
7…9
1
2
Not assigned
31…3
4…6
7…9
1
2
3
