4.9.3 Batch Control with Barcode Reader
If a barcode reader is connected to the interface “RS232 for barcode reader”
(connector 2) or “RS232/RS485” (connector 7), then the batch start, batch
stop, and input of batch texts in a current batch report, can be controlled by
the barcode reader. The bar codes that are used all correspond to the type
“Code39”.
Preconditions -The interface must be configured for bar code operation.
Example:
Configuration
Î Interface Î RS232 for barcode reader Î General Î
Protocol = bar code.
-The batch start (= batch stop) must be configured.
Example for batch start/stop:
Configuration
Î Batch/plant Î Batch (Plant) 1 Î General Î Batch start =
bar code.
-Every line that is to be set by the bar code must be configured.
Example for plant 1, line 1 (program name):
Configuration
Î Batch/plant Î Batch (Plant) 1 Î Line 1 Î Content of right
column = bar code.
Activate
batch
Show batch
report
If one of the visualizations is active, and nothing is being entered or edited at
the moment, then the current batch report can be inserted via the barcode
reader. The precondition is that the batch is active and the parameter is set to
Configuration
Î Screen Î Bar code -> current batch = Yes.

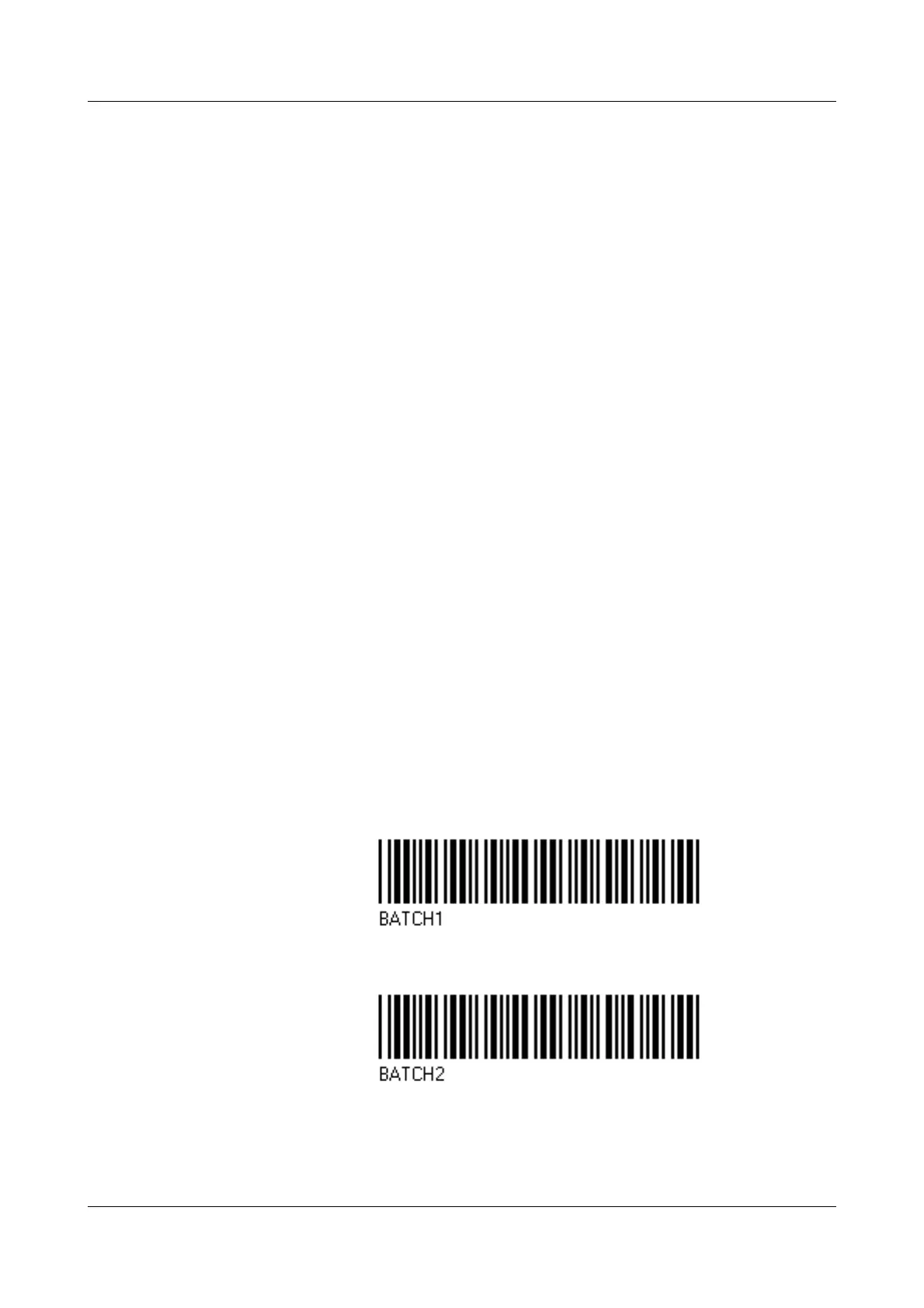

Activate and display (if required) batch report for batch (plant) 1:
Activate and display (if required) batch report for batch (plant) 2:
Before entering commands through a barcode reader, the
corresponding batch/plant 1 — 3 must be prepared by scanning in
“BATCH1 — 3” for the bar code commands, regardless of whether
or not they are automatically displayed.
