4 Visualization
4.4 Bar Graph Presentation

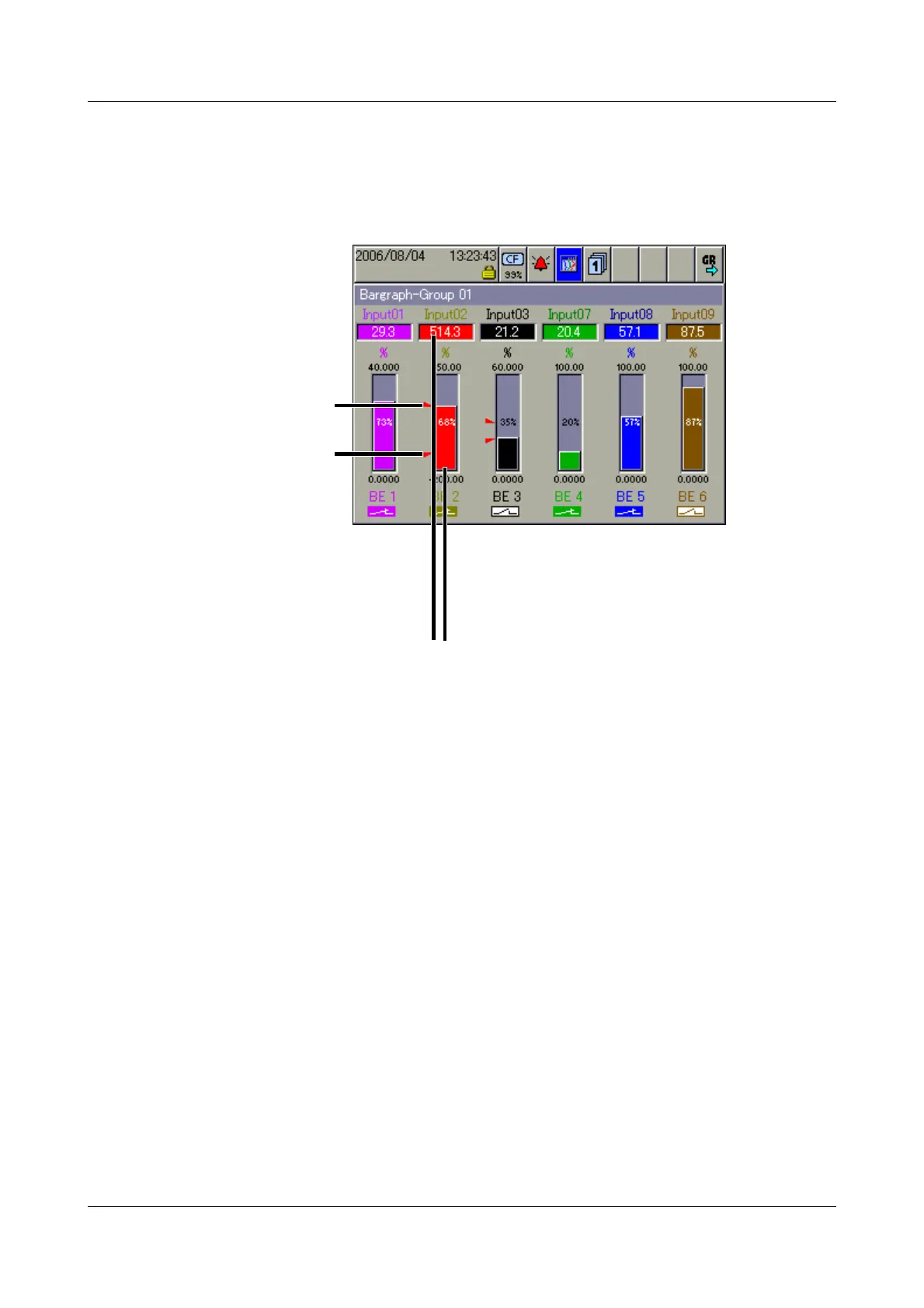

In this visualization mode, the analog inputs are presented both numerically
and in bar graph form. In addition to the analog channels, the digital inputs can
also be visualized at the bottom of the display.
If only digital channels are to be presented, then Chapter 4.7 "Binary diagram
presentation" is recommended.
Configurable
alarm limits
An alarm (Alarm 1 or Alarm 2) is indicated by
an orange or red background. The colors
can be configured in the setup program.
