35
4 Visualization
4.6 Process Image Presentation

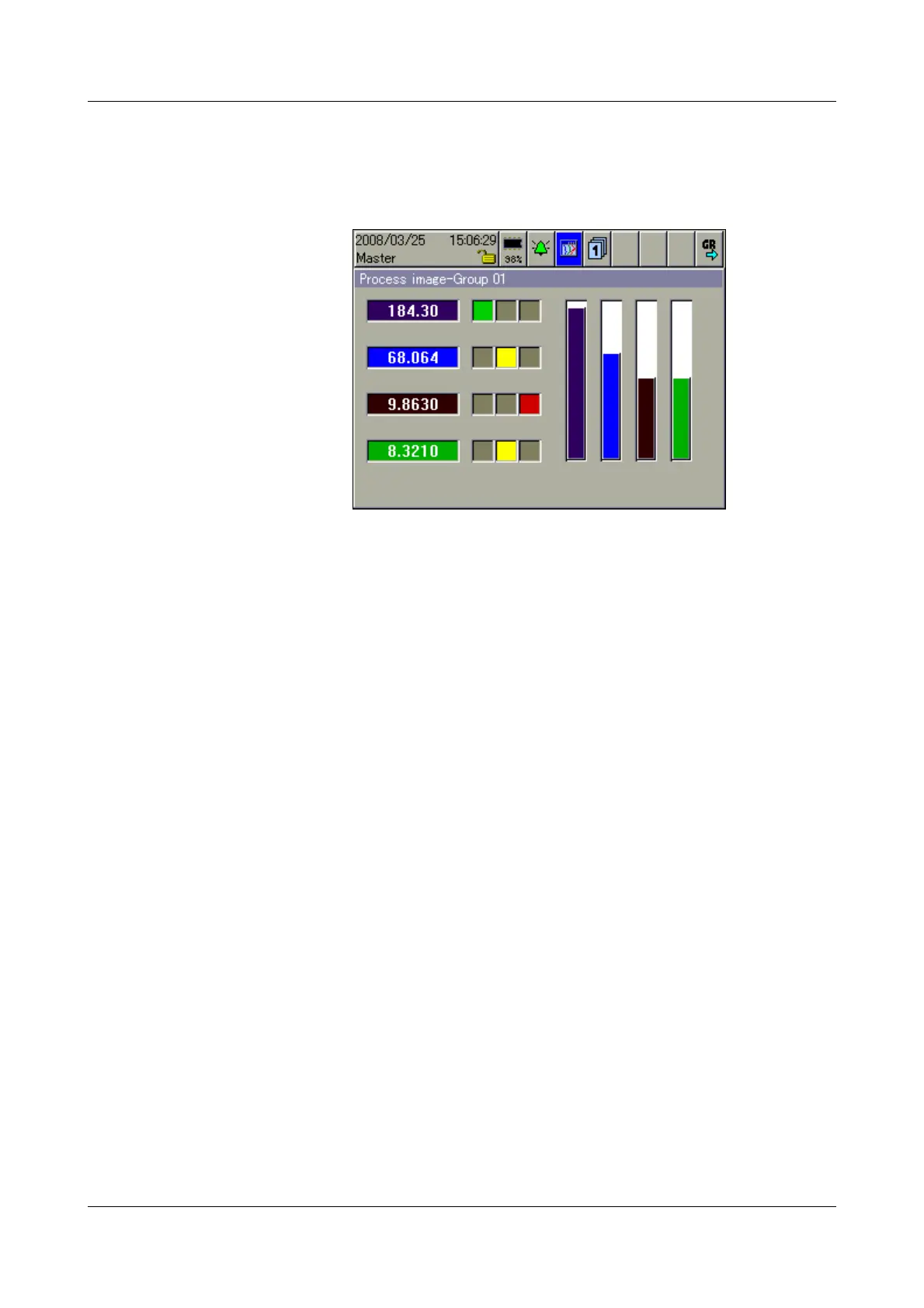

The display shows selected measurement signals and background pictures in
a maximum of nine process images. The setup program is used to prepare
and configure the images.
4.7 Binary diagram presentation
In the display the analog channels are dispensed with; only the binary chan-
nels and signals are visualized.
For this type of display one distinguishes between vertical and horizontal pre-
sentation. Only one of the two presentation types can be active for all groups.
v Configuration Î Screen Î Show binary image
v Configuration
Î Screen Î Diagram display
Each process image can be freely configured by the user. One
background image (316 × 188 pixel) and 25 objects (analog/binary
signals, icons, texts, bars) can be used per process image.
Further information can be obtained from the instructions on the
setup program (B 706581.6).
