2.4 Group and plant management (batches)

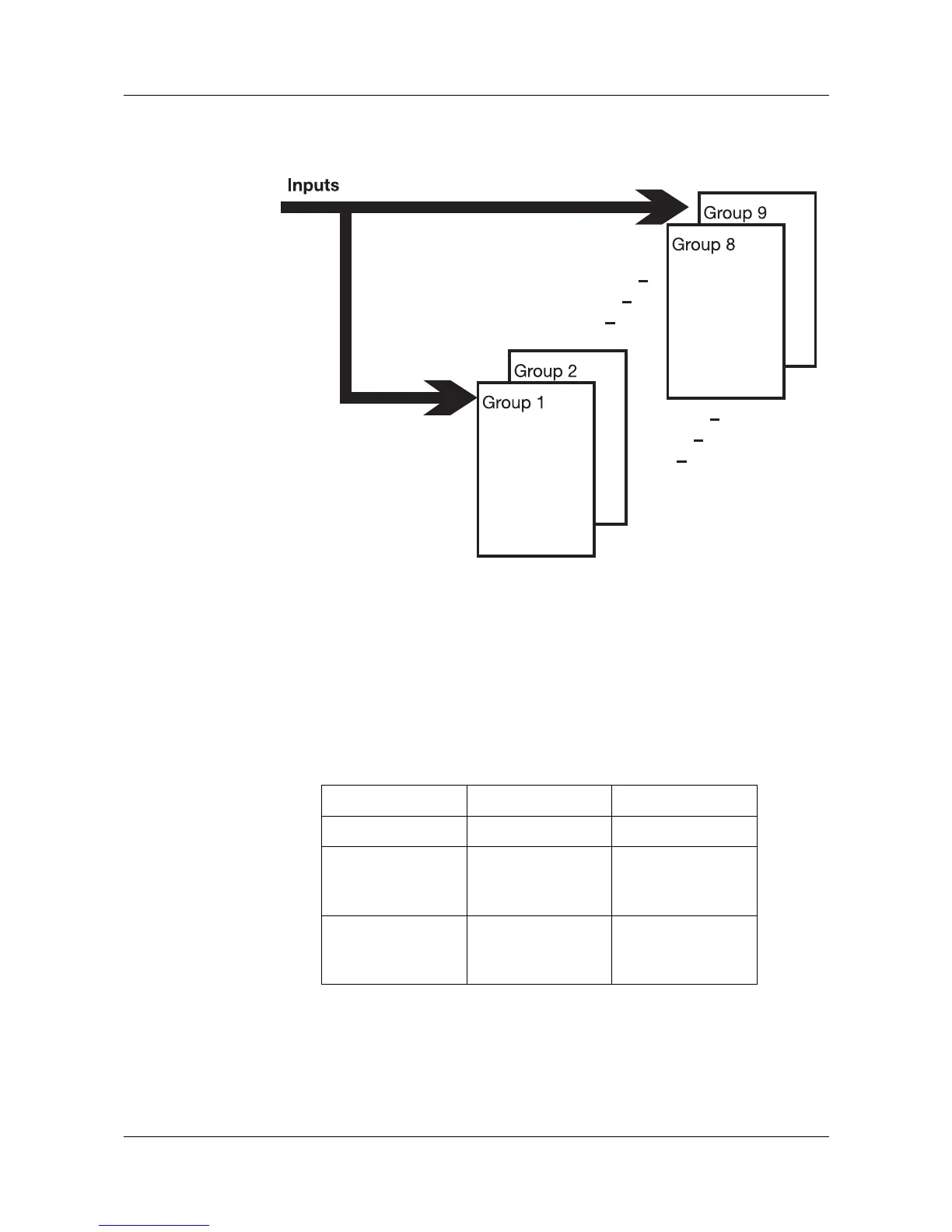

Within the recorder, all analog inputs, binary inputs, counters and integrators,
are collected together into groups. A maximum of nine groups is available as a
total. Each group can consist of a maximum of 6 analog inputs, 6 binary
inputs/outputs, and 4 counters/integrators.
The presentation of the analog inputs and binary inputs/outputs is always
made on a group basis.
If plants (batches) are used, then the groups have a fixed assignment to the
plants (batches).
Plant number Group Plant (batch)
11—91
21—3
4—6
7—9
1
2
not assigned
31—3
4—6
7—9
1
2
3
