3 Operator level (visualization)
28
3.6 Process diagram

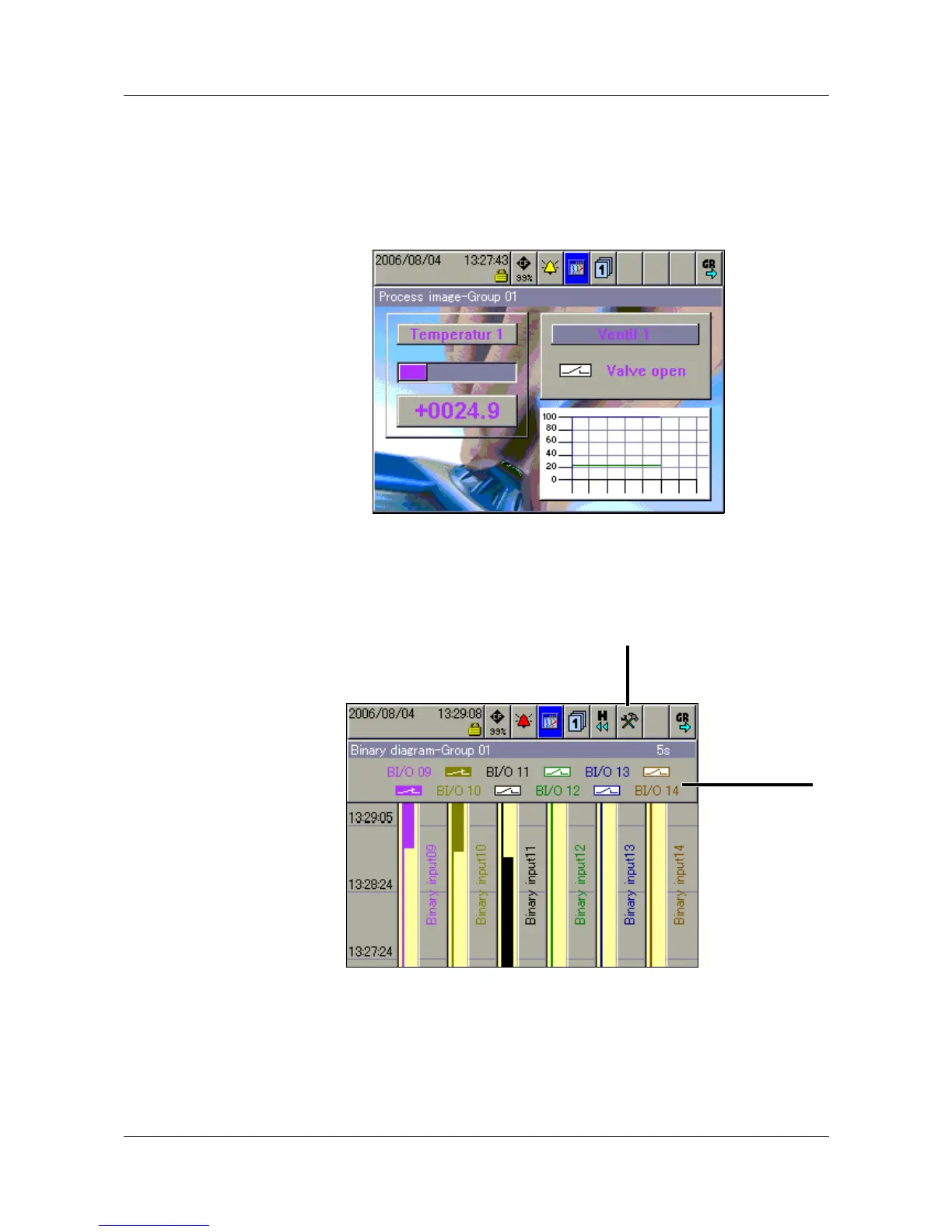

In the presentation, selected measurement signals and background pictures
are shown in a process diagram (one group per process diagram). The
preparation and configuration of the diagram can only be carried out by the
device manufacturer.
3.7 Binary presentation
In the presentation, the analog channels are left out and only the digital
channels are visualized.
Switch diagram header
on/off
Diagram header
To Next Page
