2.4 Switching off and securing the vehicle

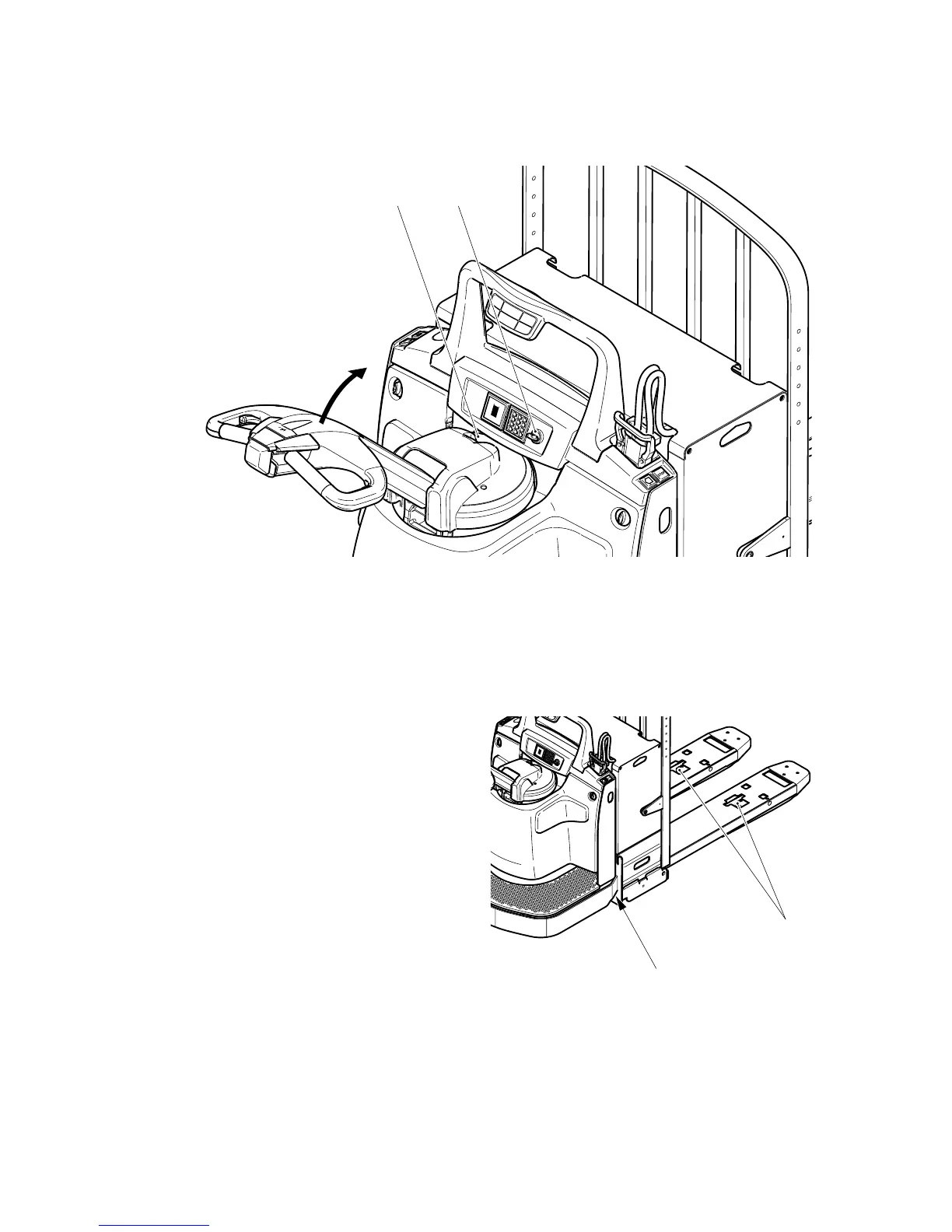

When the vehicle is left, even for a short time, it must be switched off and secured.
QwW Do not park the vehicle on a slope.
– Lower the fork completely.
– On vehicles with a locking tiller (13, o), push the tiller into the upper braking range
B (this releases the lock).
– Turn the switch latch (1) to position "0" and remove the key.
2.5 Adjusting the fork height
IMPORTANT In the event of wear on the drive
wheel or support rollers, the fork
base height or fork tip height
must be adjusted. This is
necessary to ensure that the
fork can still be moved easily
into and out of pallets.
The fork base height is adjusted with a
bolt and counter nut located between the
load frame and drive frame (20) on both
sides.
The fork tip height is adjusted with the pull rod adjusting nuts (21).
IMPORTANT These adjustments may only be made by authorized and appropriately
trained employees.
