6 Information display (CANDIS) (o)

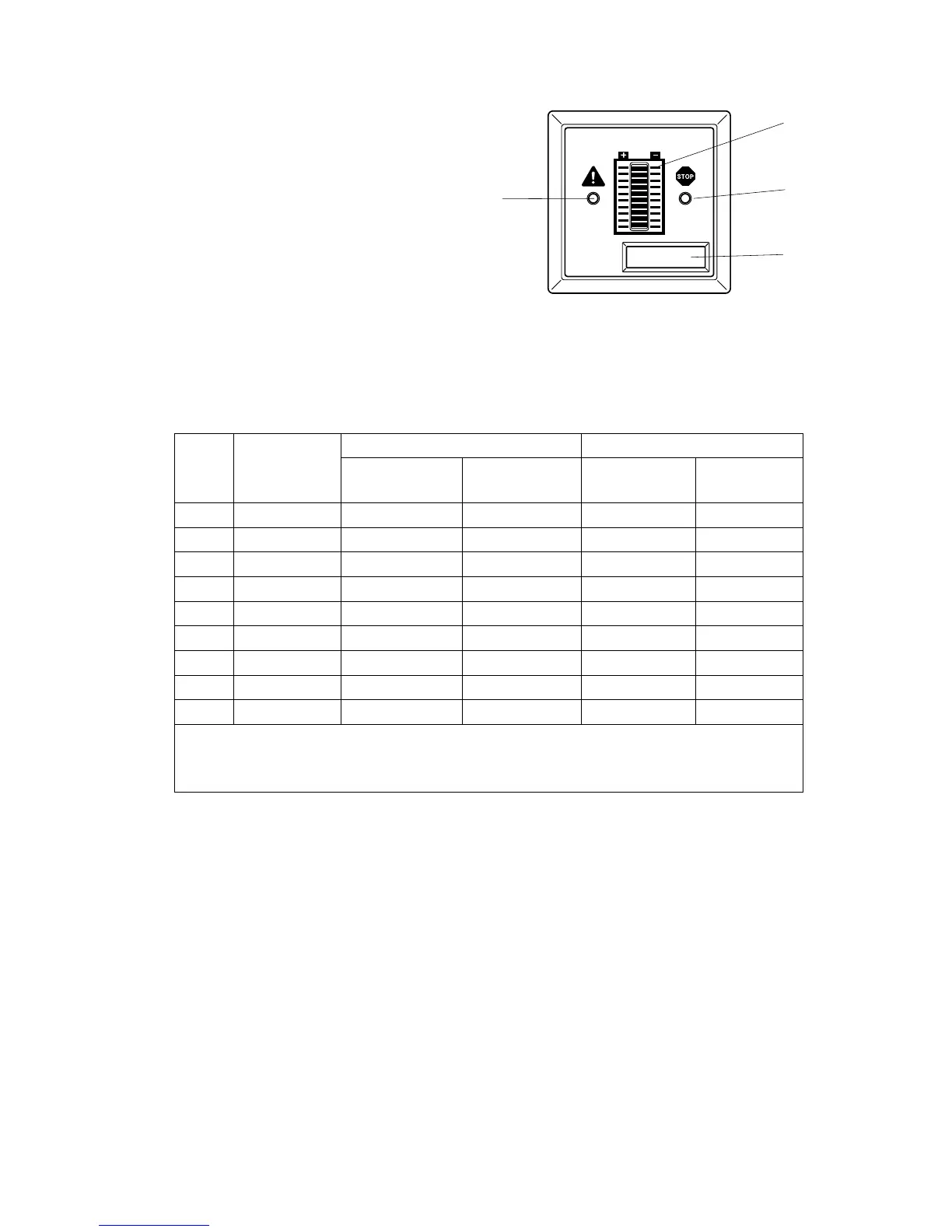

The information display shows:
– Residual battery charge
(LED bar (29)),
– Operating hours
(LCD display (30)).
Electronic component error
messages and parameter changes
are also displayed.
Charge level display
Depending on the type of battery used, there may also be switch-on limits for the
additional displays "Warning" (28) and "Stop" (30).
Num-
ber of
bars
Charge level Wet battery Maintenance-free battery
LED (yellow)
Warning
LED (red)
Stop
LED (yellow)
Warning
LED (red)
Stop
10 90.1- 100% out out out out
9 80.1 - 90% out out out out
8 70.1 - 80% out out out out
7 60.1 - 70% out out out out
6 50.1 - 60% out out out out
5 40.1 - 50% out out on out
4 30.1 - 40% out out on on
3 20.1 - 30% on out on on
2 10.1 - 20% on on on on
Do not allow the charge level to drop below the 20% limit for wet batteries or the
40% limit for
maintenance-free batteries.
