4.2 Front cover disassembly
Front panel disassembly
Requirements
– Prepare the truck for maintenance and repair work, see page 184.
Tools and Material Required
– Allen key opening 5
Procedure

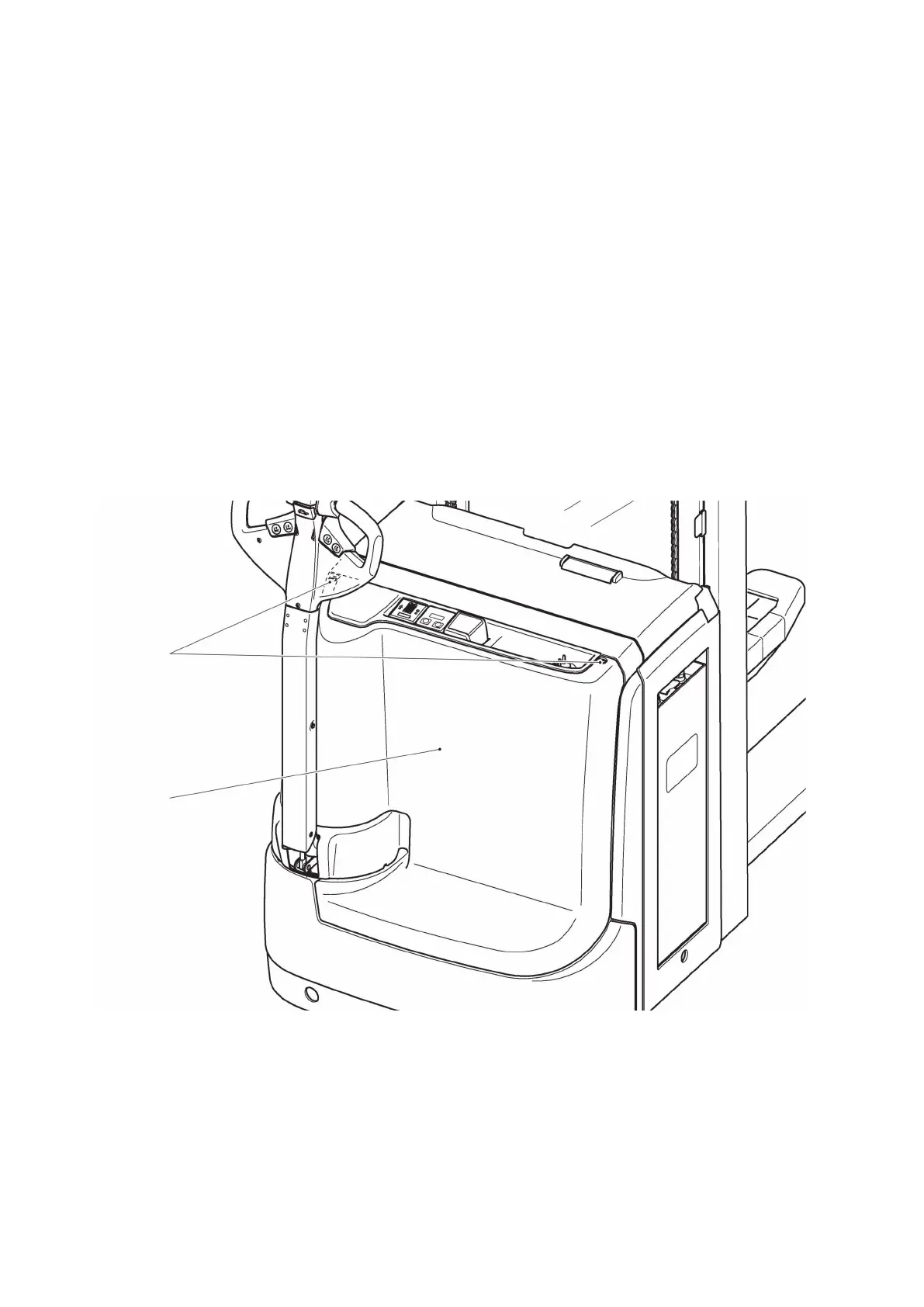

• Turn or slightly tilt tiller towards the edge of the truck.
• Remove the screws (111) with the Allen key.
• Carefully remove the front panel (20) and put it to one side.
The front cover has been removed.
Z
When installing the front panel (20), tighten the screws (111) to 3 Nm.
