0502.GB

B 8

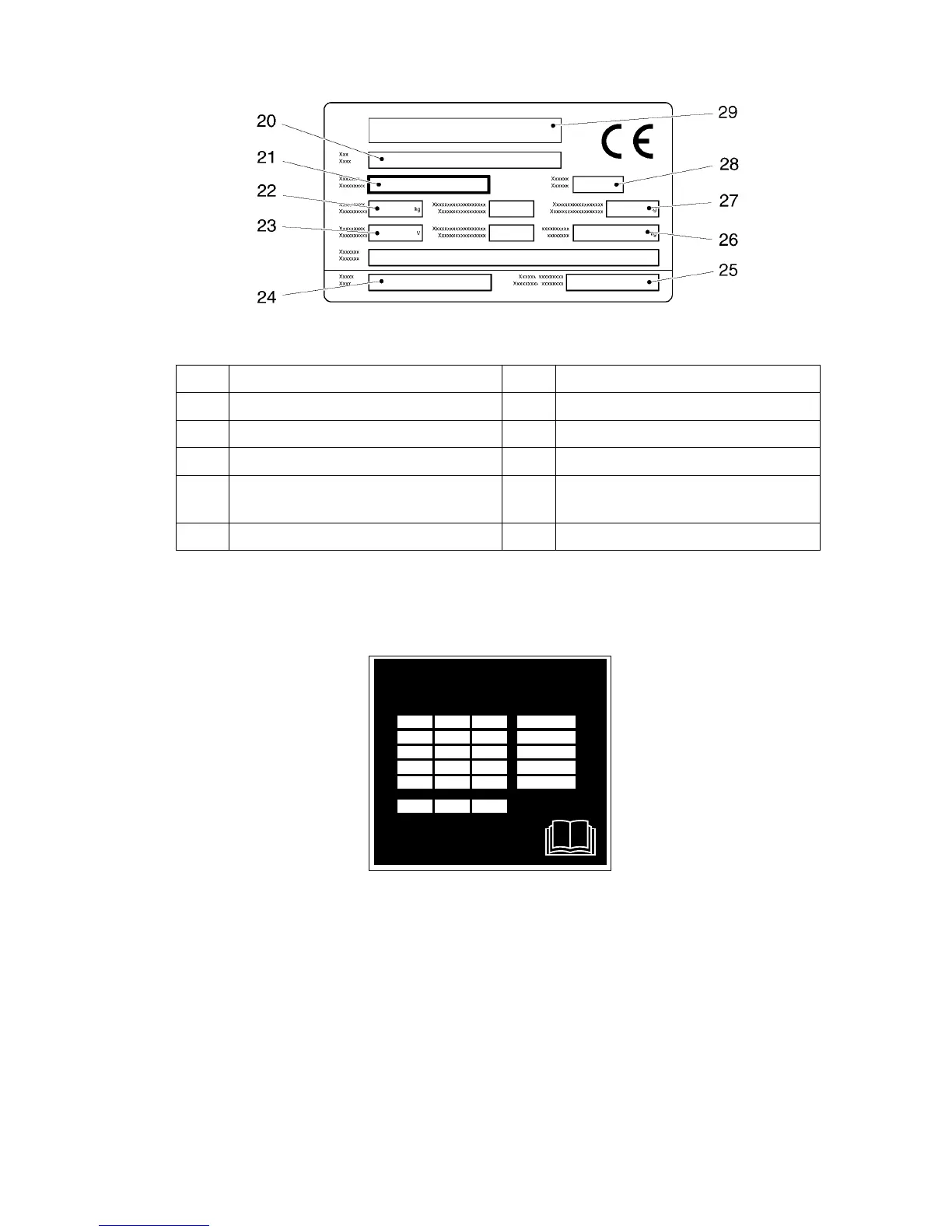

4.1 Truck identification plate

In the event of queries relating to the truck or spare part orders, please state the serial

no. (21) of the truck.

4.2 Load Diagram (14)

The load diagram gives the lifting capacity Q kg. of the vehicle when the hoist frame

is vertical. The maximum lifting capacity at a standardised load centre distance * C

(in mm) for a desired lifting height H (in mm) is shown in the form of a table.

*) The standardised load centre distance takes into account the width of the load as

well as its height.

Item Designation Item Designation

20 Type 25 Load centre distance in mm

21 Serial No. 26 Min./max. battery weight in kg

22 Rated capacity in kg 27 Empty weight without battery in kg

23 Battery: Voltage V

Ampere hours Ah

28 Year of manufacture

24 Manufacturer 29 Manufacturer logo

066 594 000 F - D - GB - NL

Distance du centre de la charge

Lastschwerpunktabstand

Load centre distance

Zwaartepuntsafstand

Capacité

Tragfähigkeit

Capacity

Draagvermogen

Hauteur de levée

Hubhöhe

Lift height

Hefhoogte
