Jungheinrich HC 10 User Manual

0502.GB
E 2

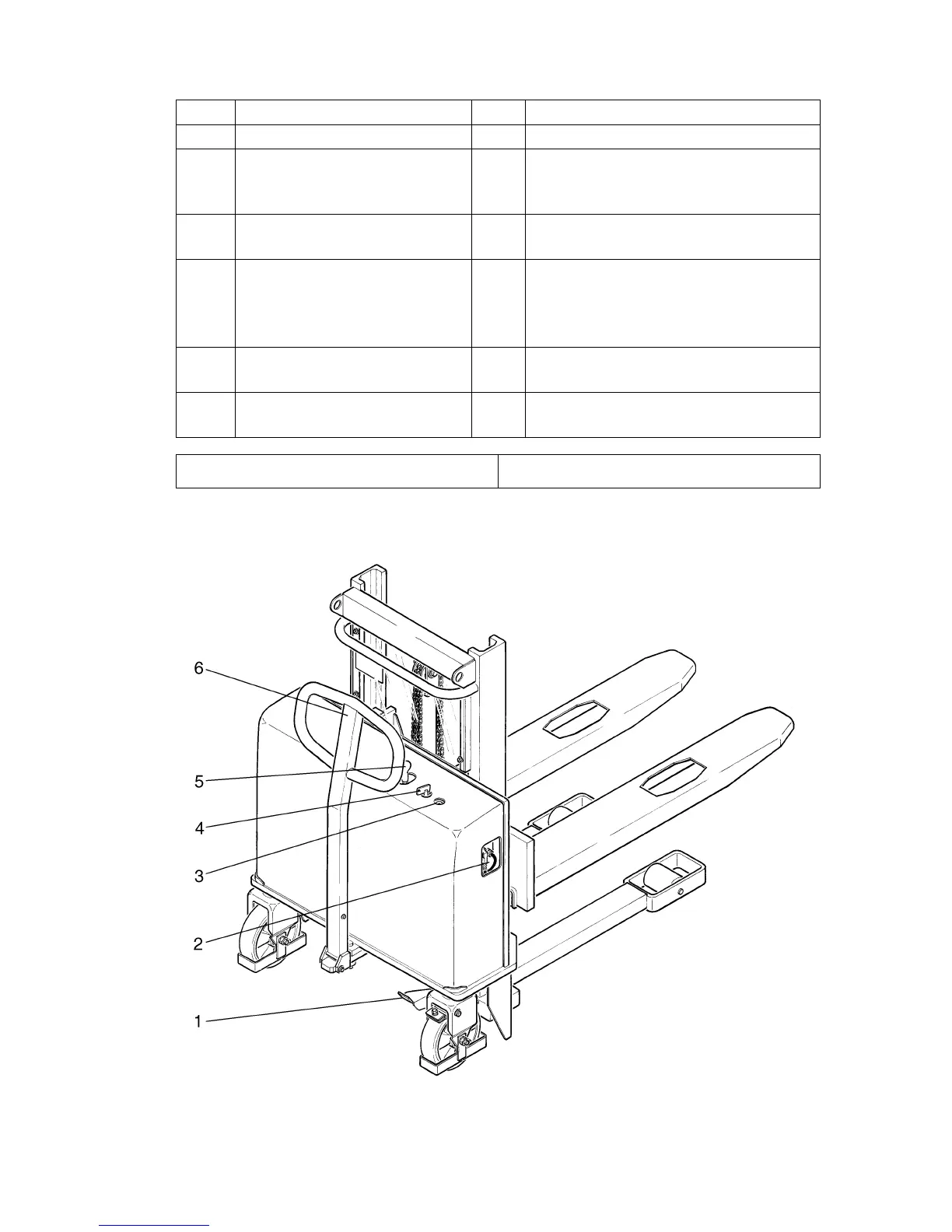

2 Description of the operating controls and indicators
Item Control or indicator Function
1 Brake pedal t Prevents the vehicle rolling.
2 Integrated charger
(incl. safety cut-out)
t
The battery is charged when the
mains plug is plugged into an electric
outlet.
3 Battery monitor o Shows the charging condition of the
battery (refer to chapter D).
4 Key swith t For switching the control current on
and off.
Prevents unauthorised use of the ve-
hicle.
5 Operating lever, raise / lower
fork.
t Raises or lowers the fork
6 Control shaft t Moves vehicle forwards and back-
wards and steers vehicle.
t = Standard equipment o = Optional equipment
0502.GB
E 2
2 Description of the operating controls and indicators
Item Control or indicator Function
1 Brake pedal t Prevents the vehicle rolling.
2 Integrated charger
(incl. safety cut-out)
t
The battery is charged when the
mains plug is plugged into an electric
outlet.
3 Battery monitor o Shows the charging condition of the
battery (refer to chapter D).
4 Key swith t For switching the control current on
and off.
Prevents unauthorised use of the ve-
hicle.
5 Operating lever, raise / lower
fork.
t Raises or lowers the fork
6 Control shaft t Moves vehicle forwards and back-
wards and steers vehicle.
t = Standard equipment o = Optional equipment
