Jungheinrich HC 10 User Manual

0502.GB
B 2

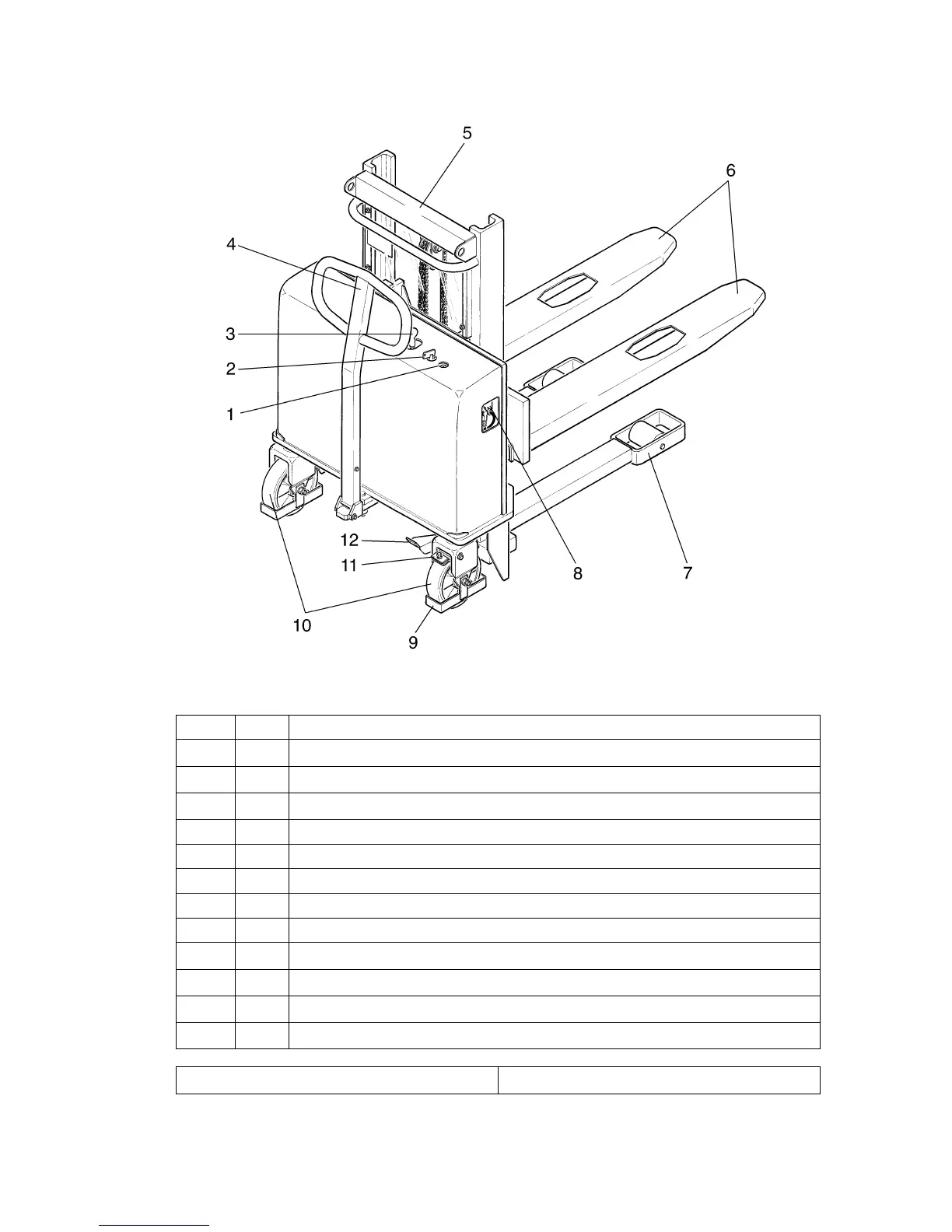

2 Description of the assemblies and functions
Item Designation
1 o
Battery monitor
2 t
Key switch
3 t
Operating lever, raise / lower fork
4 t Control shaft
5 t Hoist frame
6 t Load lifting device
7 t Load-bearing wheel arm
8 t Battery charge plug 230 VAC (integrated battery charger)
9 t
Wheel guard
10 t
Steering wheels
11 t
Parking brake
12 t
Brake pedal (parking brake)
t = Standard equipment o = Optional equipment
