Juniper EX4650 Series

NOTE:
•
The SFP-T transceivers are supported only on top or bottom ports, upto a maximum of 24 ports
•
The SFP28 speed can be applied only for individual quads (four ports). The speed cannot be
configured for a single port.

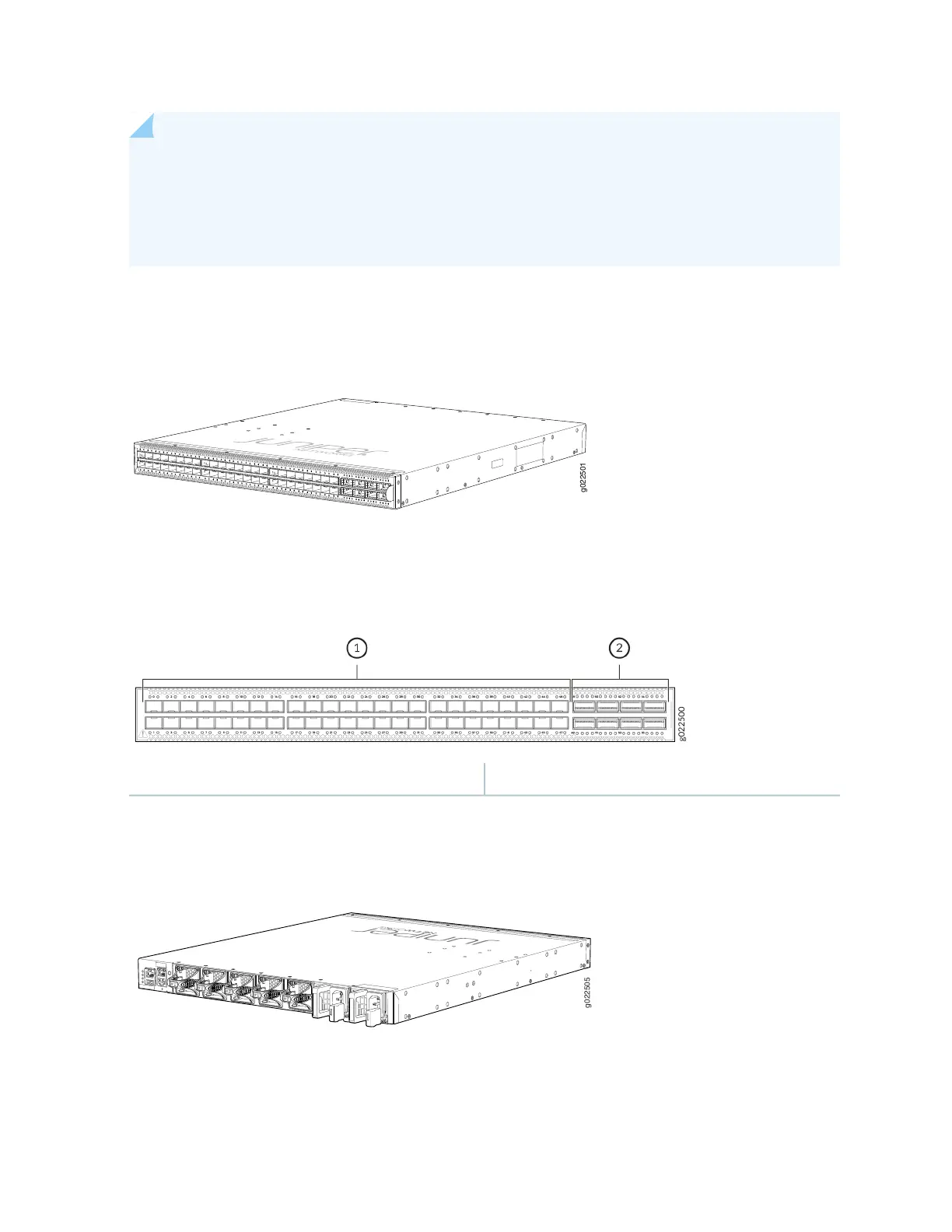

Figure 1 on page 21 and Figure 2 on page 21 show the front panel of an EX4650 switch.
Figure 1: Front Panel of an EX4650 Switch
g022501
Figure 2 on page 21 shows the components on the front panel of an EX4650 switch.
Figure 2: Components on the Front Panel of an EX4650 Switch
2—1— QSFP28 portsSFP28 ports
Figure 3 on page 21 shows the rear panel of an EX4650 Switch with AC power supplies.
Figure 3: Rear Panel of an AC-Powered EX4650 Switch
g022505
Figure 4 on page 22 shows the rear view of an EX4650 Switch with DC power supplies.
21
