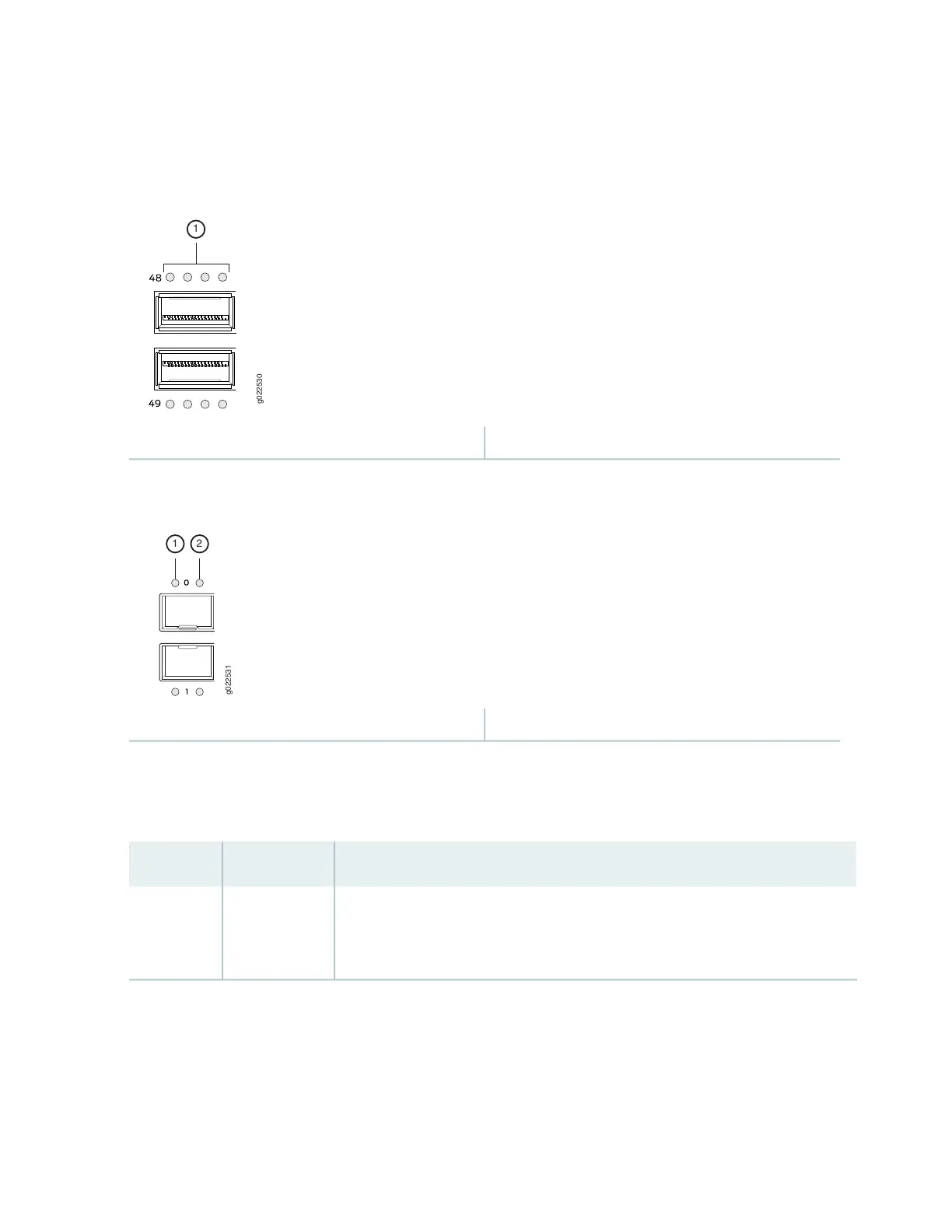

Figure 12 on page 32 shows the location of the LEDs on the SFP network ports.
Figure 11: LEDs on Network Ports
g022530
1
1—Network Port LEDs.
Figure 12: LEDs on the SFP+ Network Ports
g022531
1 2
2—1— Status LEDLink/Activity LED
The Table 8 on page 32 describes the link activity LED on network ports, SFP+ uplink ports, and built-in
QSFP+ ports.
Table 8: Link/Activity LED
State and DescriptionColorLED
•
Blinking—The port and the link are active, and there is link activity.
•
On steadily—The port and the link are active, but there is no link activity.
•
Off—The port is not active.
GreenLink activity
Table 9 on page 33 describes the Status LED on SFP+ uplink ports.
