For the cooling system to function properly, the airflow around the chassis must be unrestricted. See
Figure 27 on page 64, Figure 28 on page 64, andFigure 29 on page 65 for reference.

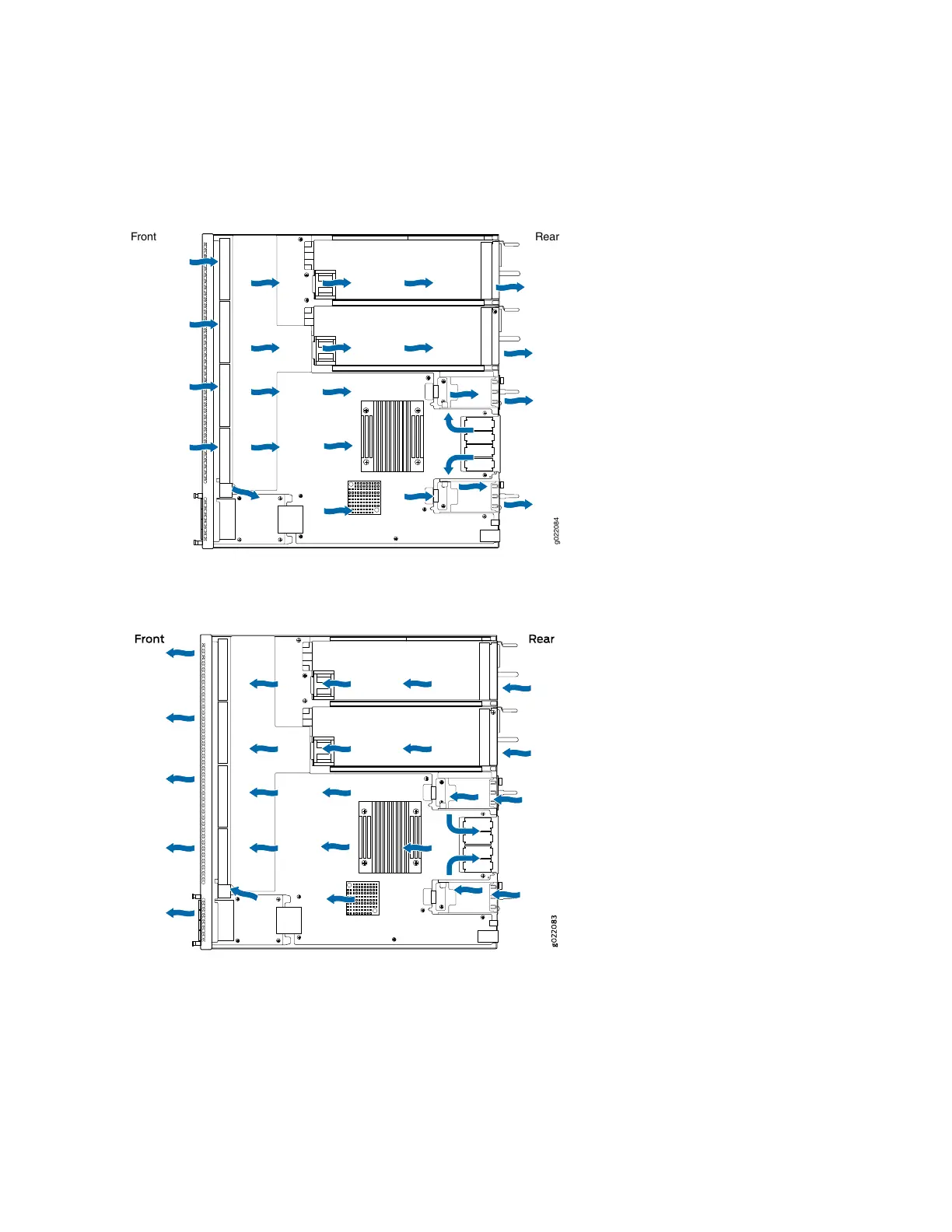

Figure 27: Front-to-Back Airflow
Figure 28: Back-to-Front Airflow
•
If you are mounting the switch on a rack or cabinet along with other equipment, ensure that the exhaust
from other equipment does not blow into the intake vents of the chassis.
•
Leave at least 6 in. (15.2 cm) clearance in front of and behind the chassis for airflow.
