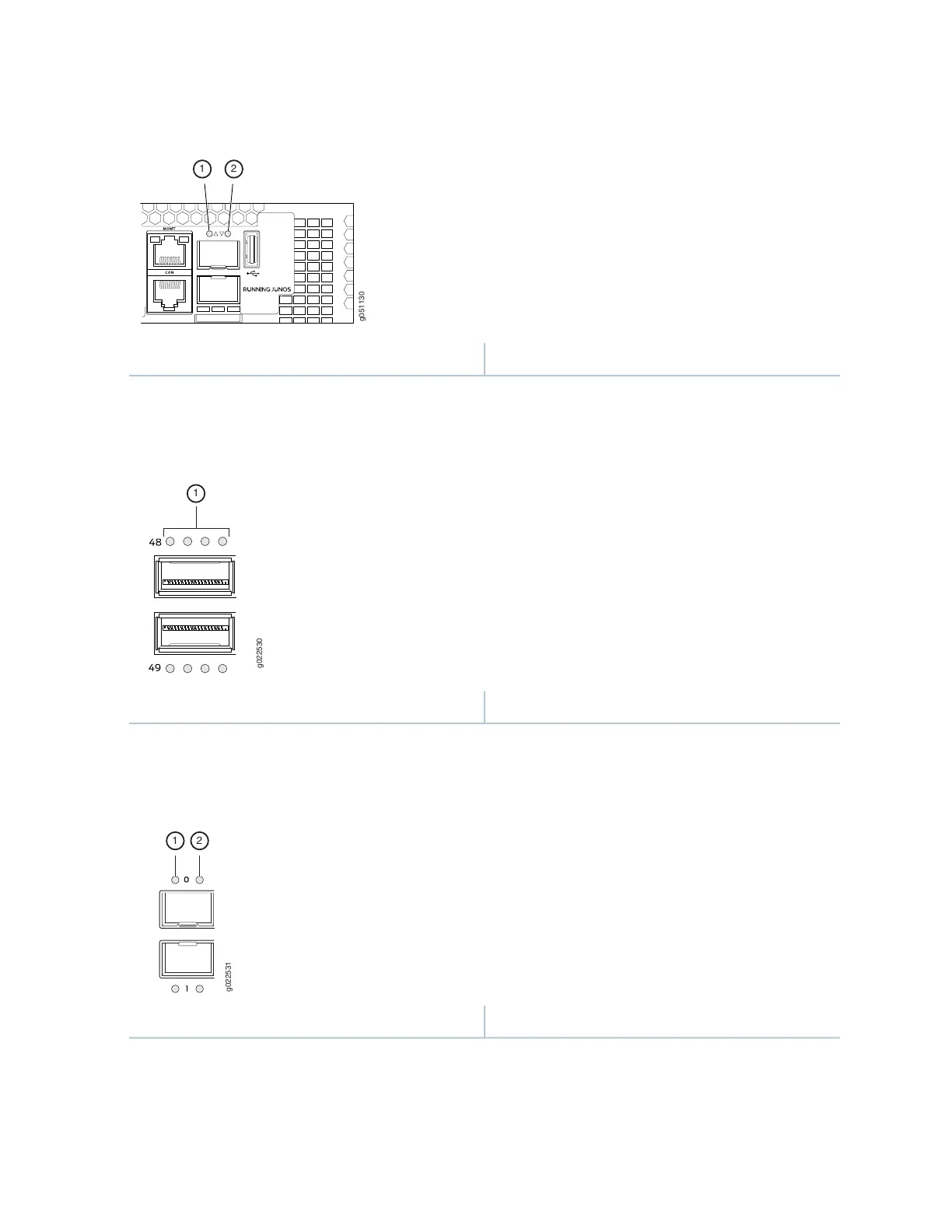

Figure 18: LEDs on the SFP+ Network Ports (QFX5120-32C)
2—1— Status LED that denotes port 33Status LED that denotes port 32
Figure 19 on page 39 shows the LEDs on the QSFP28 network ports on QFX5120-48Y.
Figure 19: LEDs on the QSFP28 Network Ports (QFX5120-48Y)
1—Network Port LEDs.
Figure 20 on page 39 shows the LEDs on the QSFP28 network ports on QFX5120-48Y.
Figure 20: LEDs on the SFP28 Network Ports (QFX5120-48Y)
2—1— Status LEDLink/Activity LED
Each QSFP28 port on a QFX5120-32C switch has four LEDs which display the link activity and status of
the port. The first LED denotes non-channelized ports and the other three denote channelized ports. Each
QSFP28 port on the QFX5120-48Y switch has four LEDs. The first LED denotes the non-channelized
39
