Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
75
81MHz VCO Center Frequency Adjustment
1. Click the Deck tab in the Adjustment Utility window.
2. Select the 81MHz VCO Center Frequency procedure in the list box if it is
not already selected.

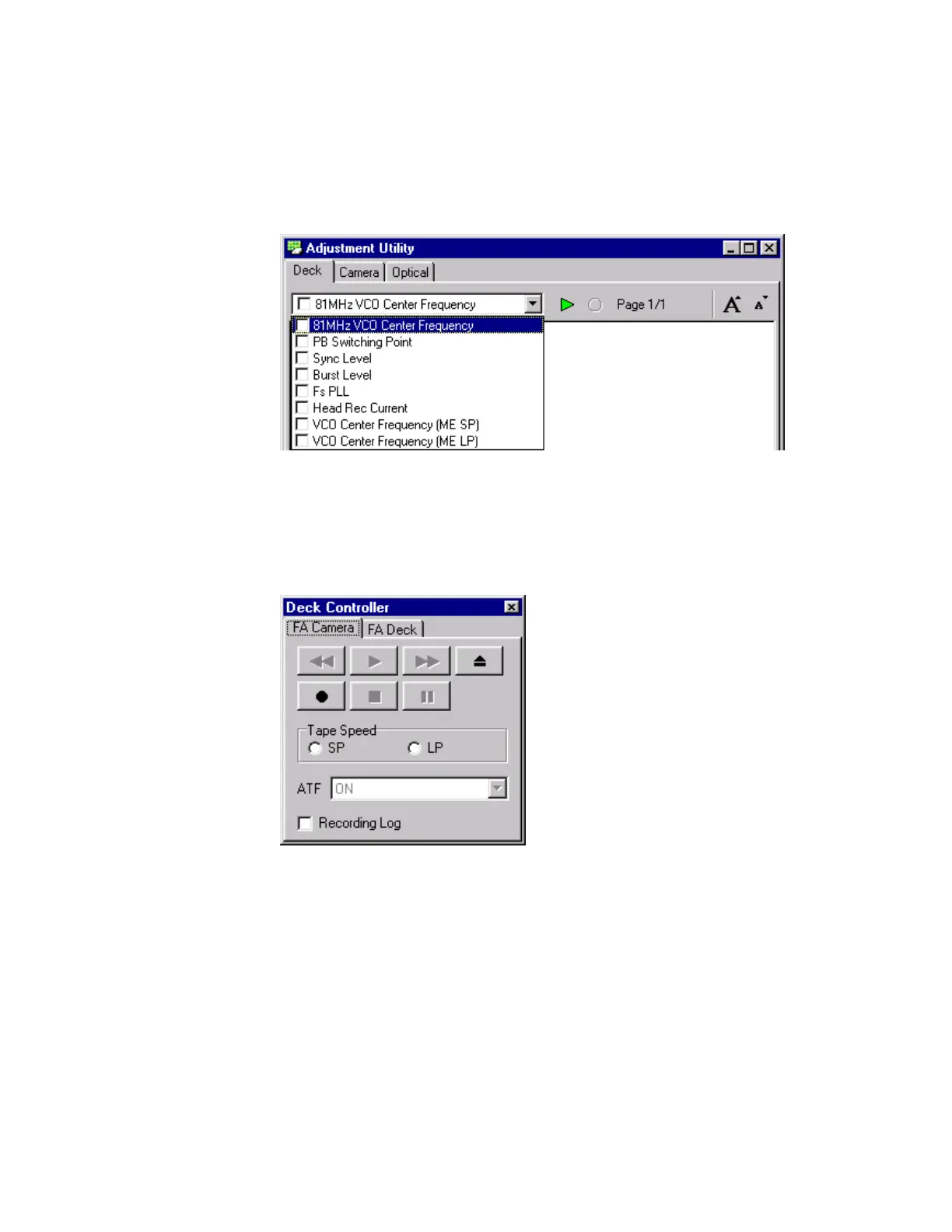

Figure 115 81MHz VCO Center Frequency
3.
Read the procedure.
4. Click the FA Camera tab in the Deck Controller window to put the unit in
the Camera mode.
Figure 116 Deck Controller Window
5.
Connect a digital voltmeter to the Main VCO test point on the Jig
Connector.
To Next Page
