JVC MX-GA77 User Manual

MX-GA77
1-16

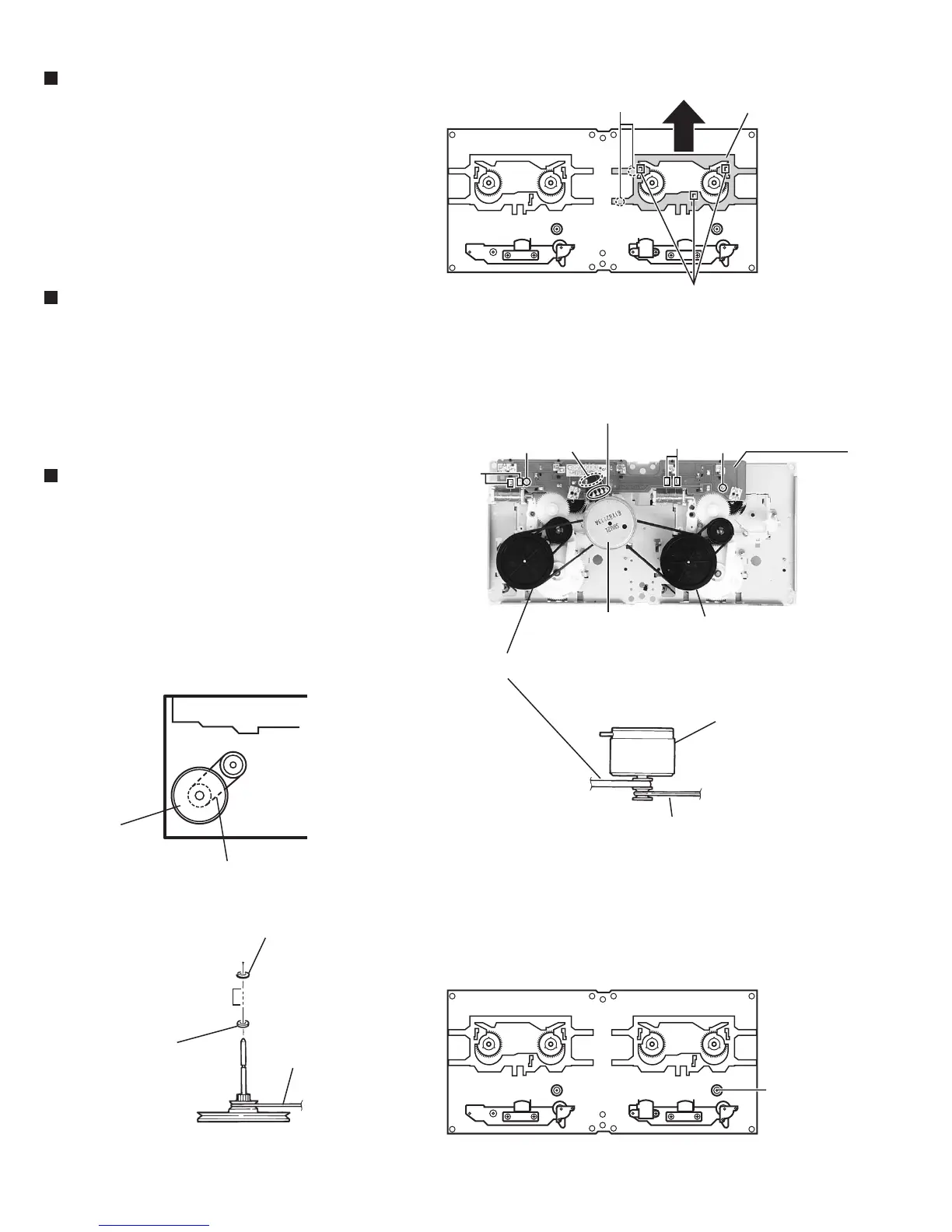

Slide the plastic cover in the direction of the arrow,
and remove the three claws. Then remove the
plastic cover.
Remove the two screws D fixing the motor.
Be careful to grease's splash when the drive belt
comes off.
Unsolder the motor terminal.
1.
2.
3.
Removing the motor (See Fig. 4 to 6)
Unsolder the four solder parts a and the four solder
parts b.
Remove the two screws E attaching the mecha.
board.
1.
2.
Removing the mechanism board
(See Fig. 5)
Remove the cut-washer at c from the capstan shaft,
then remove the flywheel.
When reassembling the flywheel, be sure to use new
washers as they cannot be reused.
1.
Removing the flywheel
(See Fig. 7 and 9)
Fig.5
Fig.4
Drive belt
Drive belt
Drive belt
Motor
Motor
terminal
Plastic cover
Claw
Motor
c
FR belt
FR belt
Washer
Flywheel
Capstan
washer
Mecha. board
Fig.6
Fig.7
Fig.8
Fig.9
Sleeve
D
E
E
Solder
part
a
Solder
part a
Solder
part b
