MX-GA77
Prior to performing the following procedure, remove
the side panel.
Remove the five screws A attaching the side panel
and remove the side panel.
1.

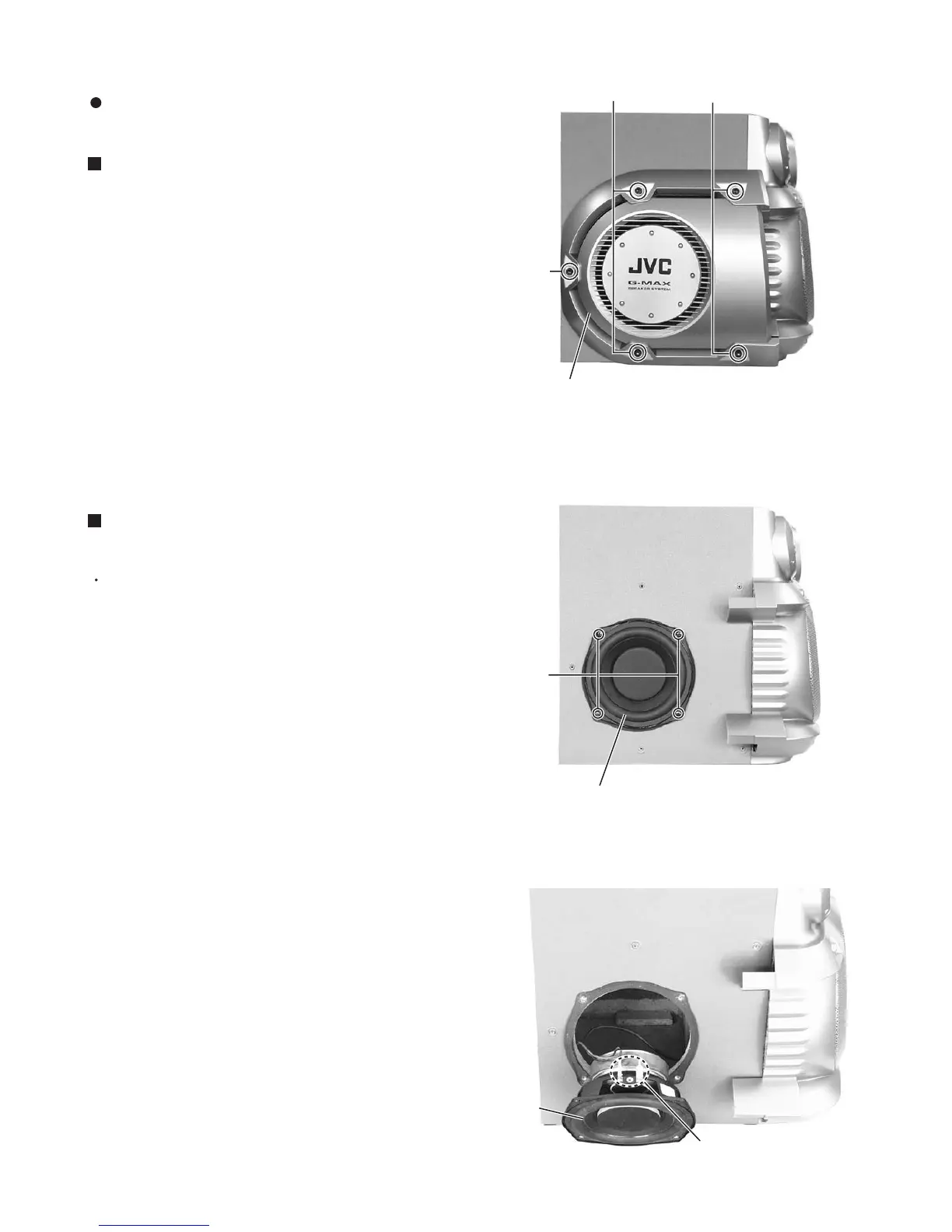

Removing the side panel (See Fig. 1)
Remove the four screws B attaching the side
speaker.
Pull out the side speaker and remove the speaker
cord from the speaker terminal.
1.
2.
Removing the side speaker
(See Fig. 2 and 3)
< Speaker section >
It is exchange in a unit.
Please do not decompose as much as possible.
Side panel
Side speaker
Side speaker
Speaker terminal
Fig.1
A
A
A
B
Fig.2
Fig.3
