MX-GA77
3-7
12
26

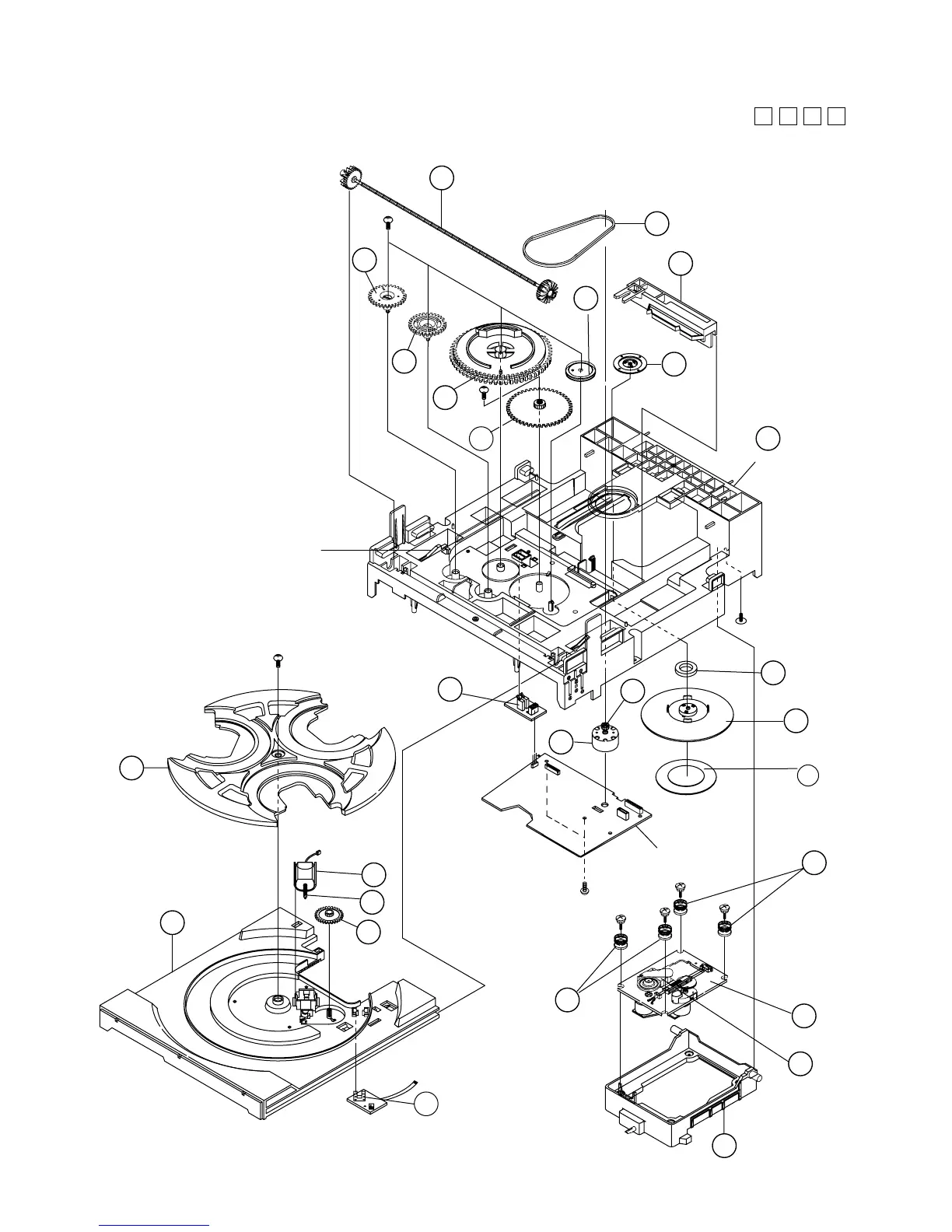

CD changer mechanism assembly and parts list
Block No.
M
M
M
A
1
2
8
7
3
4
6
5
27
19
20
21
10
9
11
14
23
25
24
17
18
22
16
15
13
Base main
Tray stopper
CD sub board
