MX-GA77
1-6
Prior to performing the following procedure, remove
the metal cover and CD changer unit.
Disconnect the card wire from the connector CW101
on the main board.
Disconnect the harness from the connector CW108,
CW109 and CW110 on the main board.
Remove the screw E fixiing the lug wire.
Remove the two screws F attaching the front panel
assembly to both sides of the body.
Remove the screw G attaching the main board to the
front panel assembly.
Remove the screw H attaching the front panel
assembly to bottom of the body.
Release the two joints1 and two joints2, and detach
the front panel assembly toward the front.
1.
2.
3.
4.
5.
6.
7.

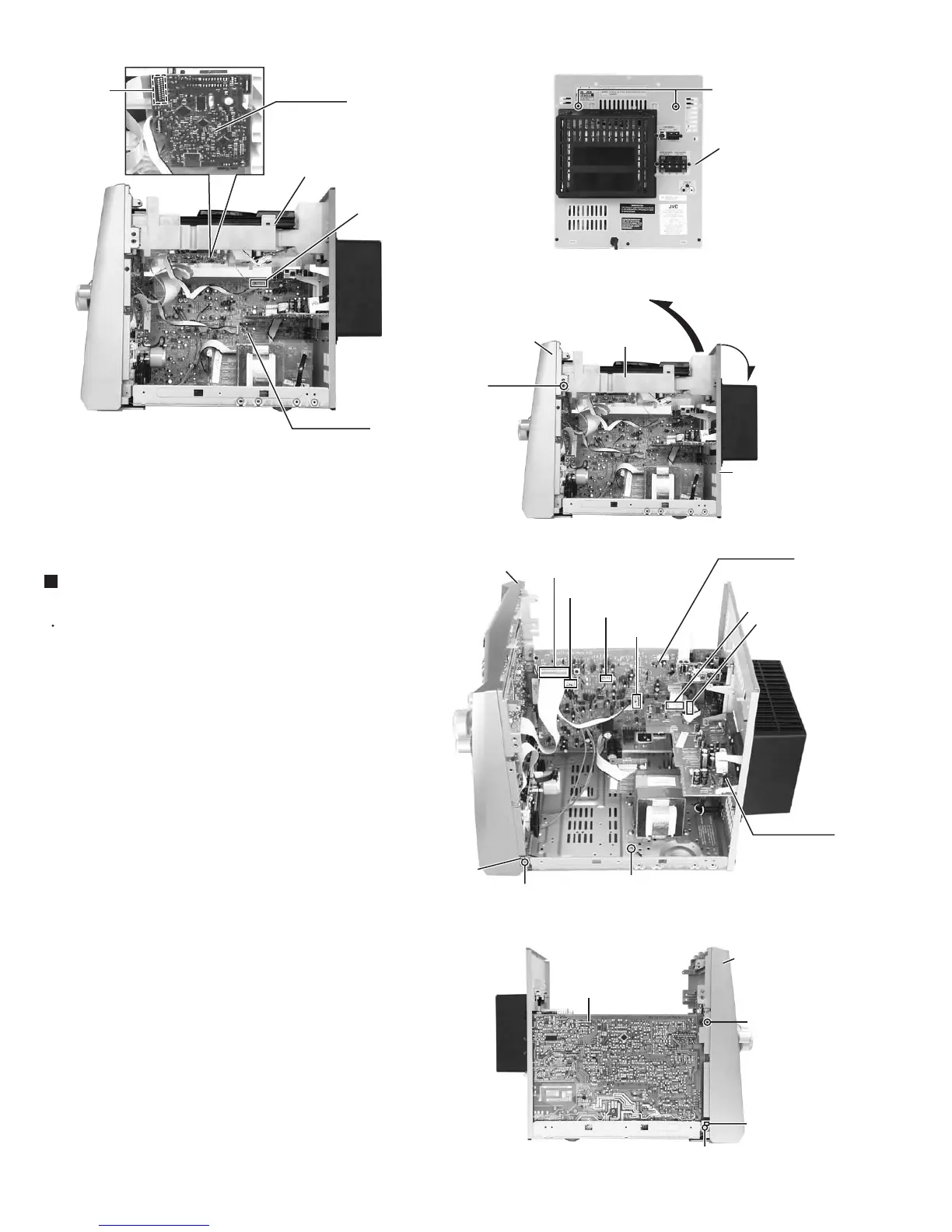

Removing the front panel assembly
(See Fig.8 to 10)
Fig.6
Fig.7
Fig.5
CW104
CD board
CD changer unit
Main board
CW105
Rear panel
C
D
(both sides)
Rear panel
CD changer unit
Front panel
assembly
Fig.8
Fig.9
Main board
Amp. board
CW101
CW109
CW110
CW108
ACW1
ACW2
Front panel
assembly
Joint1
(both sides)
F
(both sides)
Joint1
(both sides)
F
(both sides)
E(fixing the lug wire)
Front panel
assembly
G
Main board
