Kaba C-lever Installation Instructions

10 k2evo702en-2012-05 Kaba c-lever
Product description Installation instructions

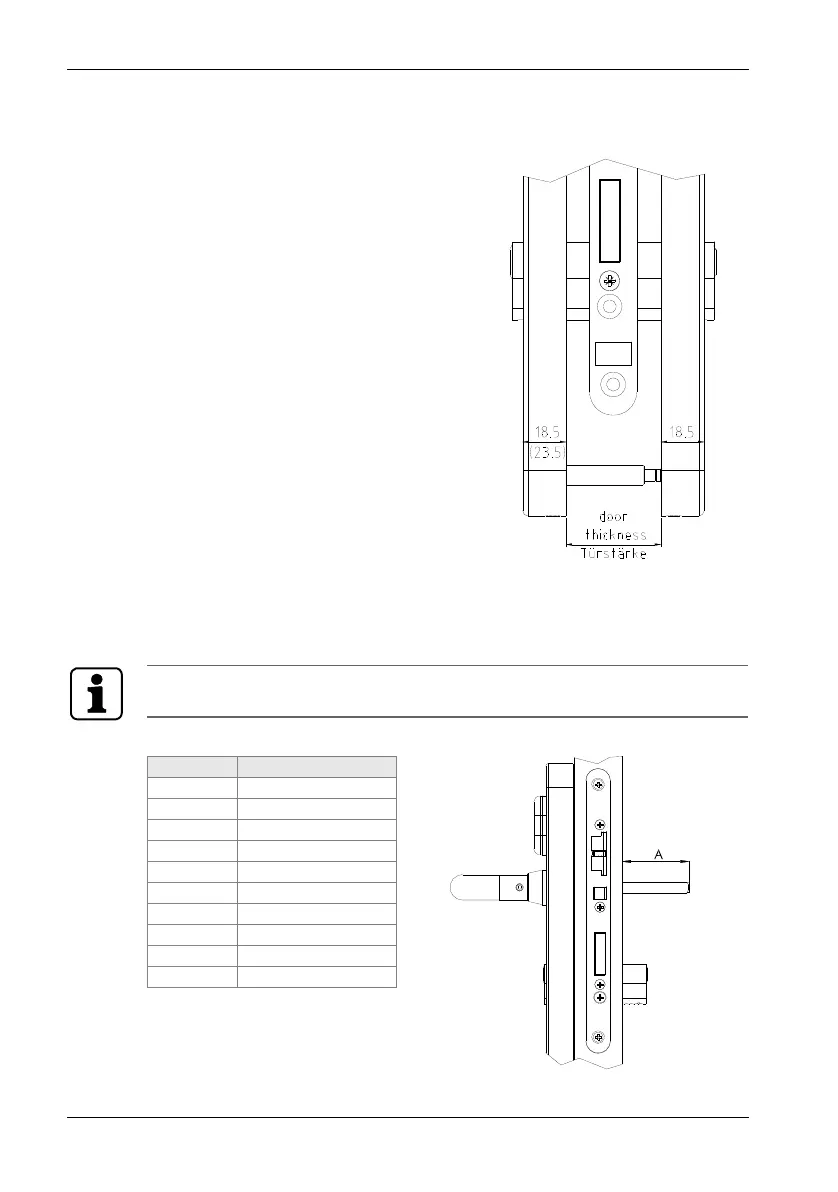

3.3.3 Locking cylinder requirements
3.3.4 Spindle standoff
Depending on the door thickness and type of handle, it may be necessary to
adjust the length of the spindle.
Cylinder standoff dimensions to be
observed
The Kaba c-lever is available with
cylinder holes for 17mm Europrofile
and 22mm round profile cylinders.
Furniture without cylinder holes can
also be employed when using single
cylinders.
In the standard version, the cylinder
standoff on both sides of the door is at
least 18.5mm.
In the enhanced security version (ES1),
the cylinder standoff on the outside of
the door is 23.5mm and 18.5 mm on
the inside of the door.
Handle type Spindle standoff "A"
HA 42 mm - 79 mm
HB 42 mm - 68 mm
HC 42 mm - 56 mm
HD 42 mm - 77 mm
HF 42 mm - 68 mm
HG 42 mm - 58 mm
HL 42 mm - 92 mm
HM 42 mm - 51 mm
HN 42 mm - 85 mm
HO 42 mm - 50mm
