Kaba C-lever Installation Instructions

Installation instructions Installation
Kaba c-lever k2evo702en-2012-05 17
4.5 Installing the furniture

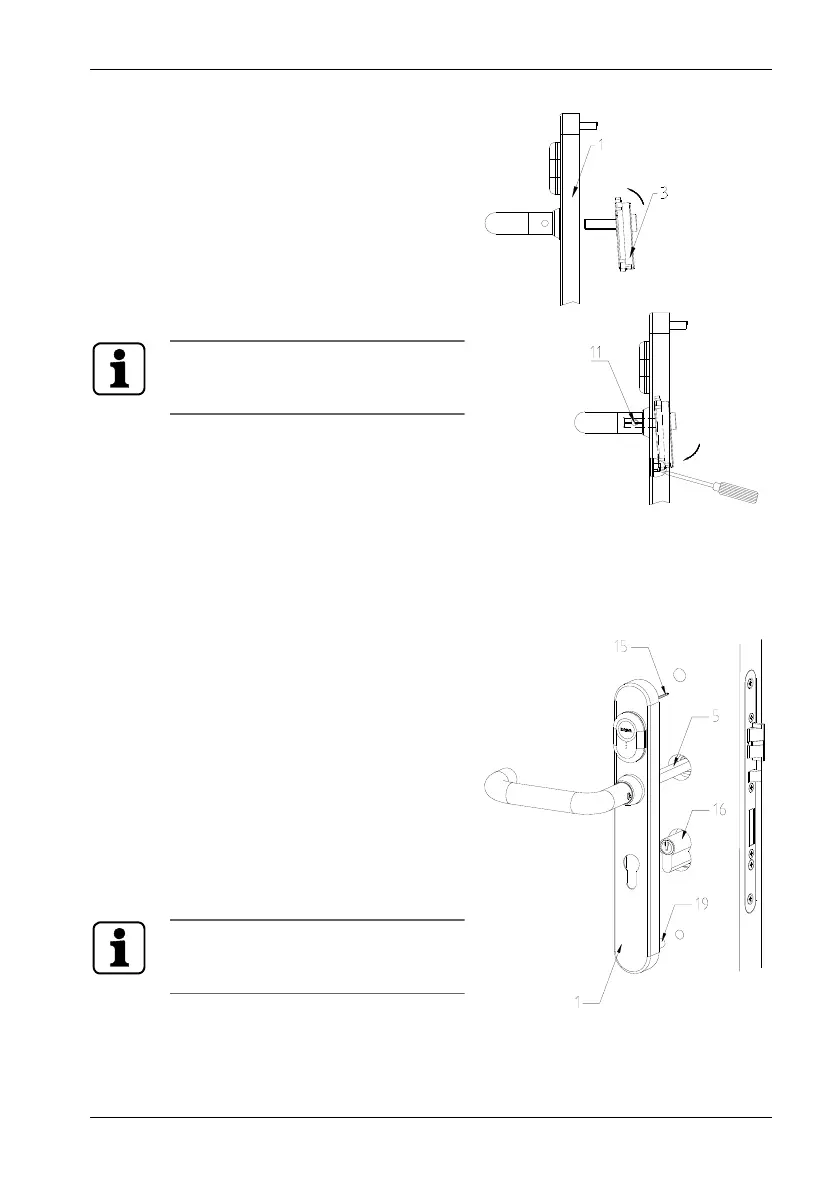

5. Slide the coupling unit (3) into the
outside shield, top first. Then push
in the lower part of the coupling
unit with the aid of a screwdriver.
6. When the coupling unit is firmly
and precisely positioned in the
outside shield, tighten it securely
with the fixing screw (11).
Be careful with the coupling unit cable
and do not bend the lugs in the outside
shield!
Fitting the external shield
1. Push the locking cylinder (16) into
the lock and secure it with the
forend locking stud (do not
tighten).
2. Feed the antenna cable through
the upper fastening hole of the
door and place the centring
sleeve (19) on the lower threaded
sleeve.
3. Fit the outside shield (1).
After fitting the external plate on the
door, pull on the spindle to relieve
pressure on the coupling unit.
