Kaba C-lever Installation Instructions

18 k2evo702en-2012-05 Kaba c-lever
Installation Installation instructions

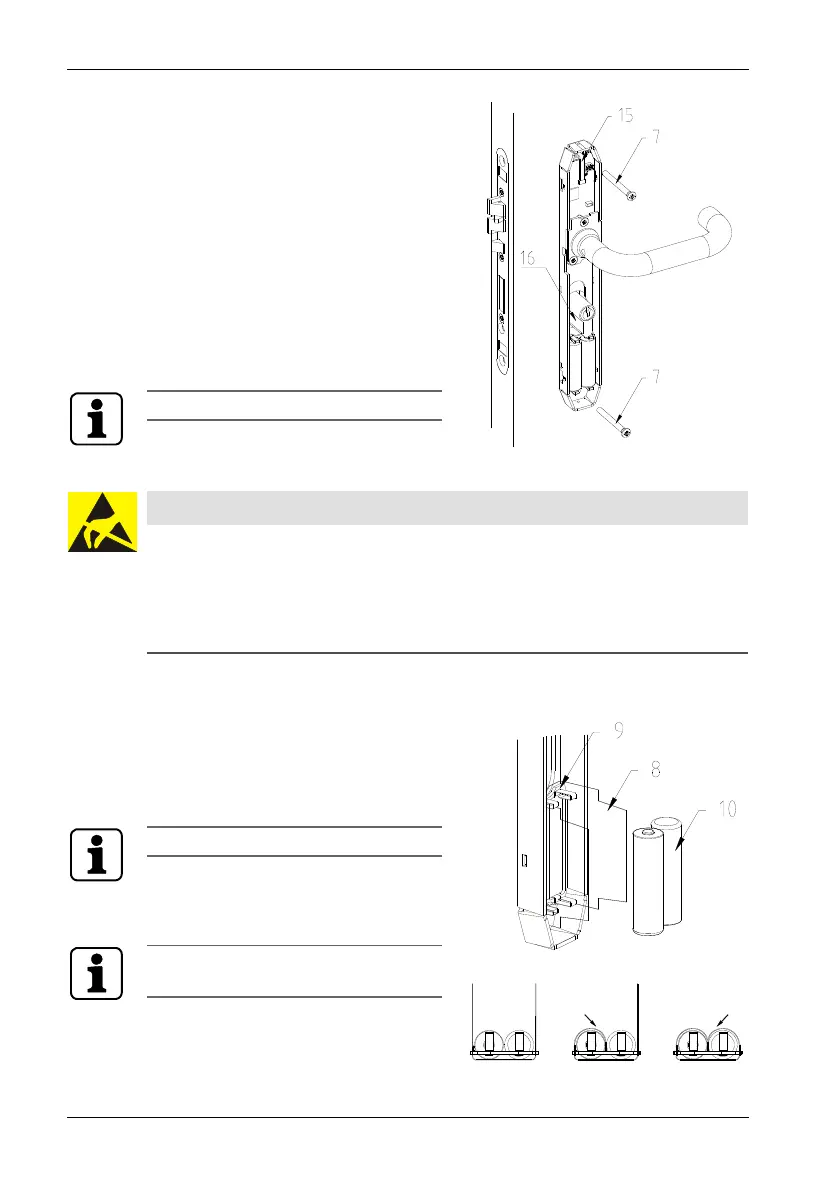

Installing the internal furniture
1. Plug the antenna cable (15) into
the PC board of the internal
furniture (6).
2. Place the internal furniture (6) on
the spindle (5) and locking
cylinder (16) and secure it to the
outside shield (1) with the two
fixing screws (7). (Tightening
torque:
max. 2.5 ±0.5 Nm)
Do not trap the antenna cable!
AT TENTION
Danger of damage to electronic components from electrostatic discharge.
Printed circuit boards can be damaged by electrostatic discharge. Direct contact
is the usual cause, but indirect contact can also result in damage.
Always wear a suitable ESD earthing strap when installing and repairing
equipment.
Inserting batteries
1. Insert the batteries (10) into the
battery circuit board (9) the right
way round.
Ensure correct battery polarity!
2. Slip the battery protection foil (8)
between the batteries.
Only use lithium batteries on doors in
outside environments.
