Kaba C-lever Installation Instructions

12 k2evo702en-2012-05 Kaba c-lever
Product description Installation instructions

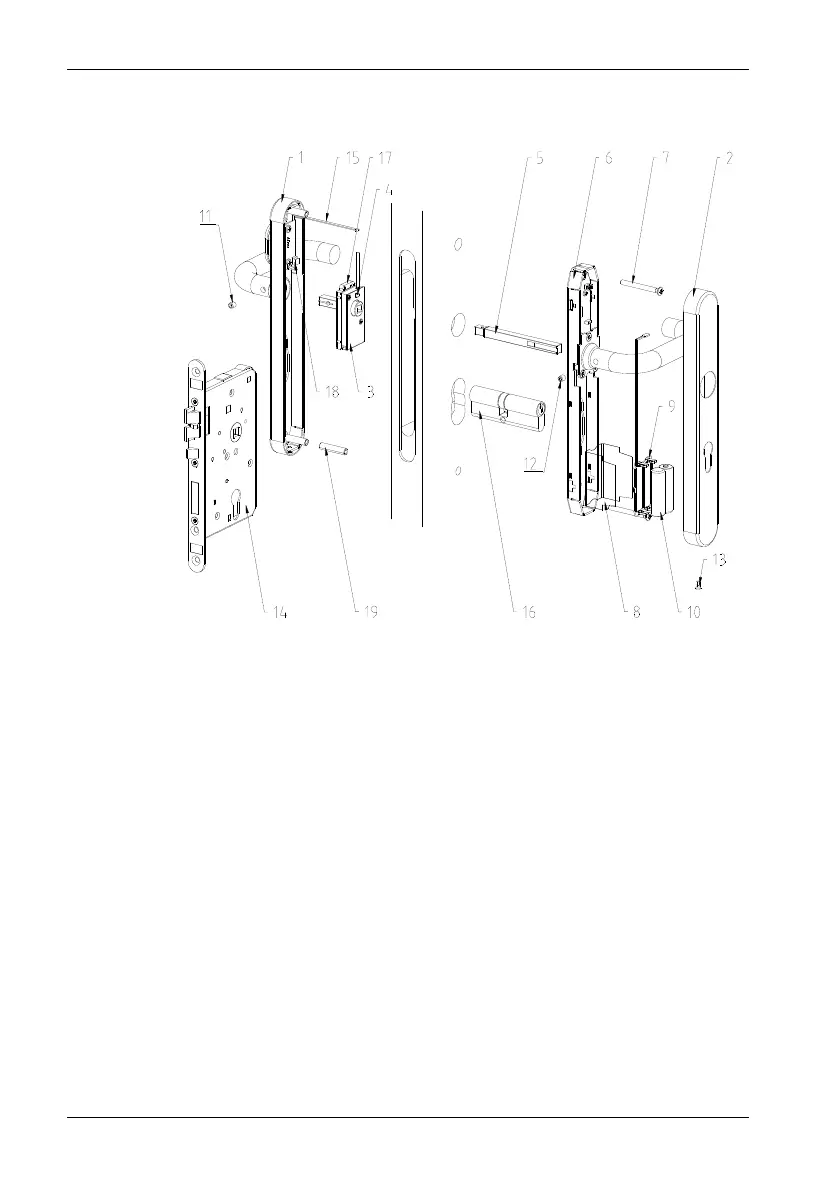

3.5 Kaba c-lever assembly
1. Outer furniture with antenna
2. Inside shield
3. Coupling unit
4. Fixing screw for spindle
5. Spindle
6. Internal furniture with e-module
7. M5 x 50mm fixing screws (two)
8. Battery protection foil
9. Battery circuit board
10. Type AA lithium batteries (two)
11. M6 fixing screw for lever handle (outside)
12. M6 fixing screw for lever handle (inside)
13. M3 fixing screw for inside shield
14. Lock (not included)
15. Antenna cable
16. Locking cylinder (not included)
17. Direction pin
18. Sleeve for coupling unit
19. Centring sleeve
