4.2.2 Disassemble power cord

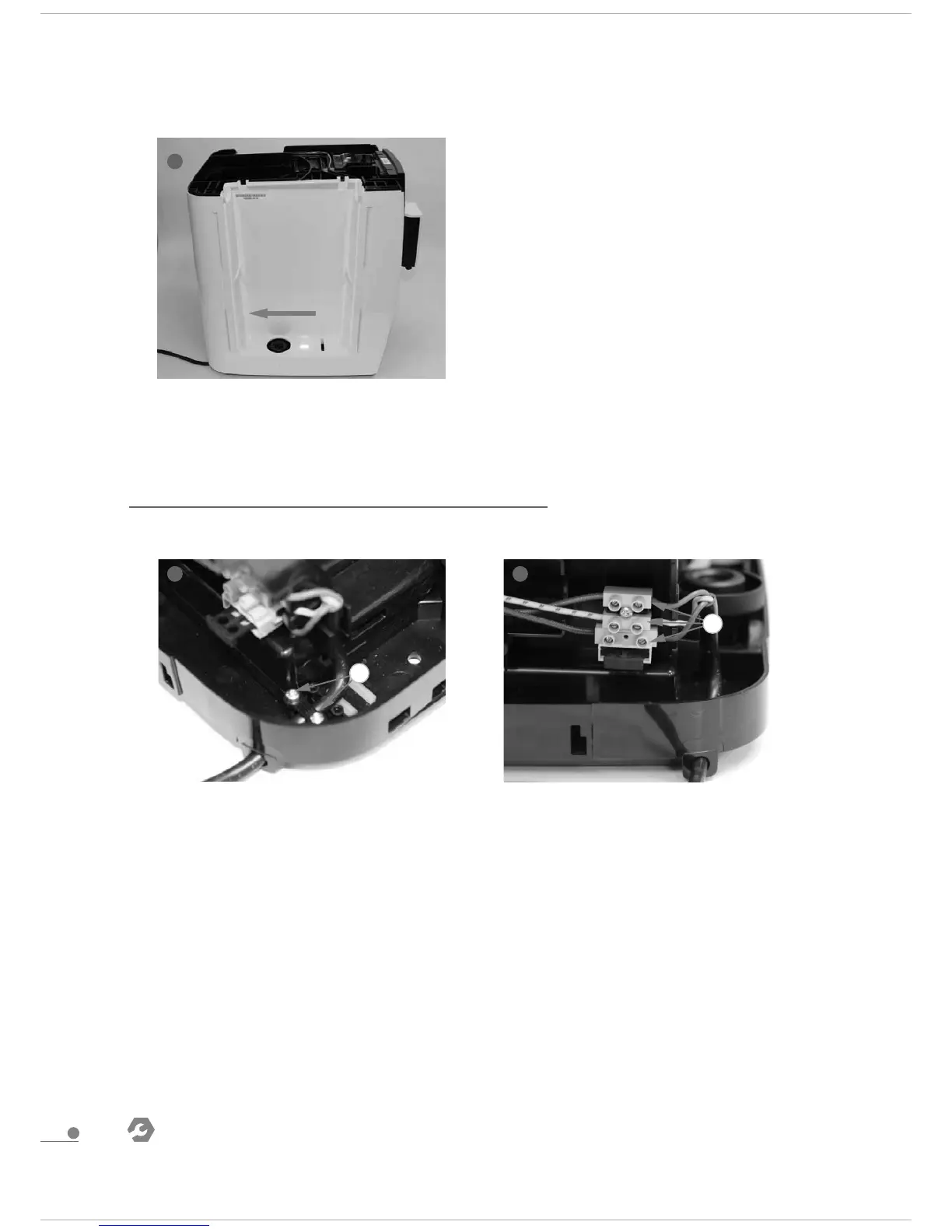

1. Disassemble left side section
according to the direction of the
arrow
1. Refer to 4.2.1- Disassemble the exterior parts of the machine
4.2.1.7 Disassemble left cover
2. Disassemble 2 screws from the
cable rack
3. Disassemble 1 screw from support,
loose 3 screws inside the line pencil
connector and take out the power cord
