Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
Repair

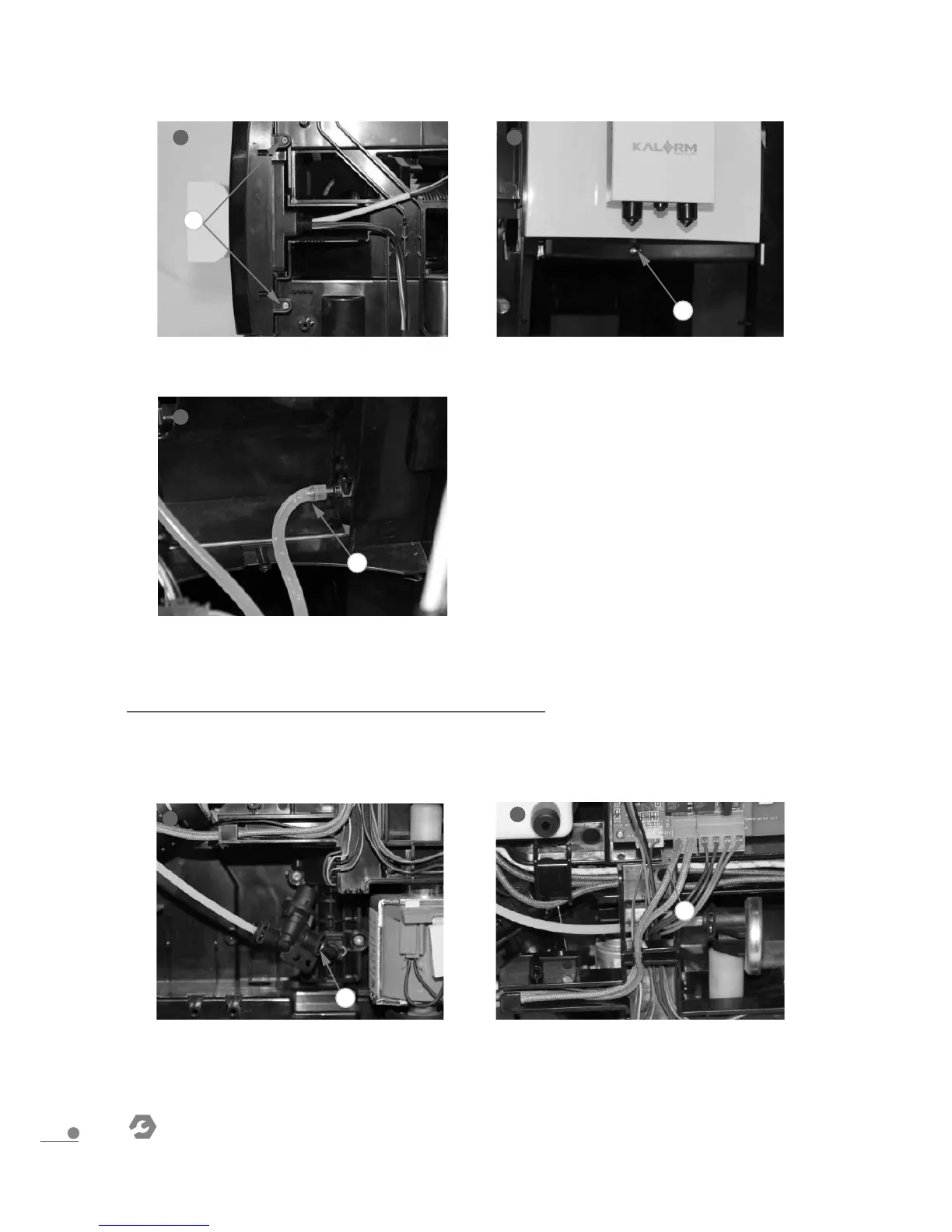

6. Disassemble 2 screws from the
support
7. Remove the decorative
cover,disassemble 1pcs screw
8. Remove the front control panel
from the main support,pull out the
silicone pipe
4.2.8 Disassemble drainage valve group
1. Refer to4.2.1-disassemble exterior parts
2. Refer to4.2.3-disassemble brew unit group
3. Remove the spring clip,pull out
the connector
4. Pull out dispenser valve terminal on
PCBA, and take it out from the cable
rack
