49

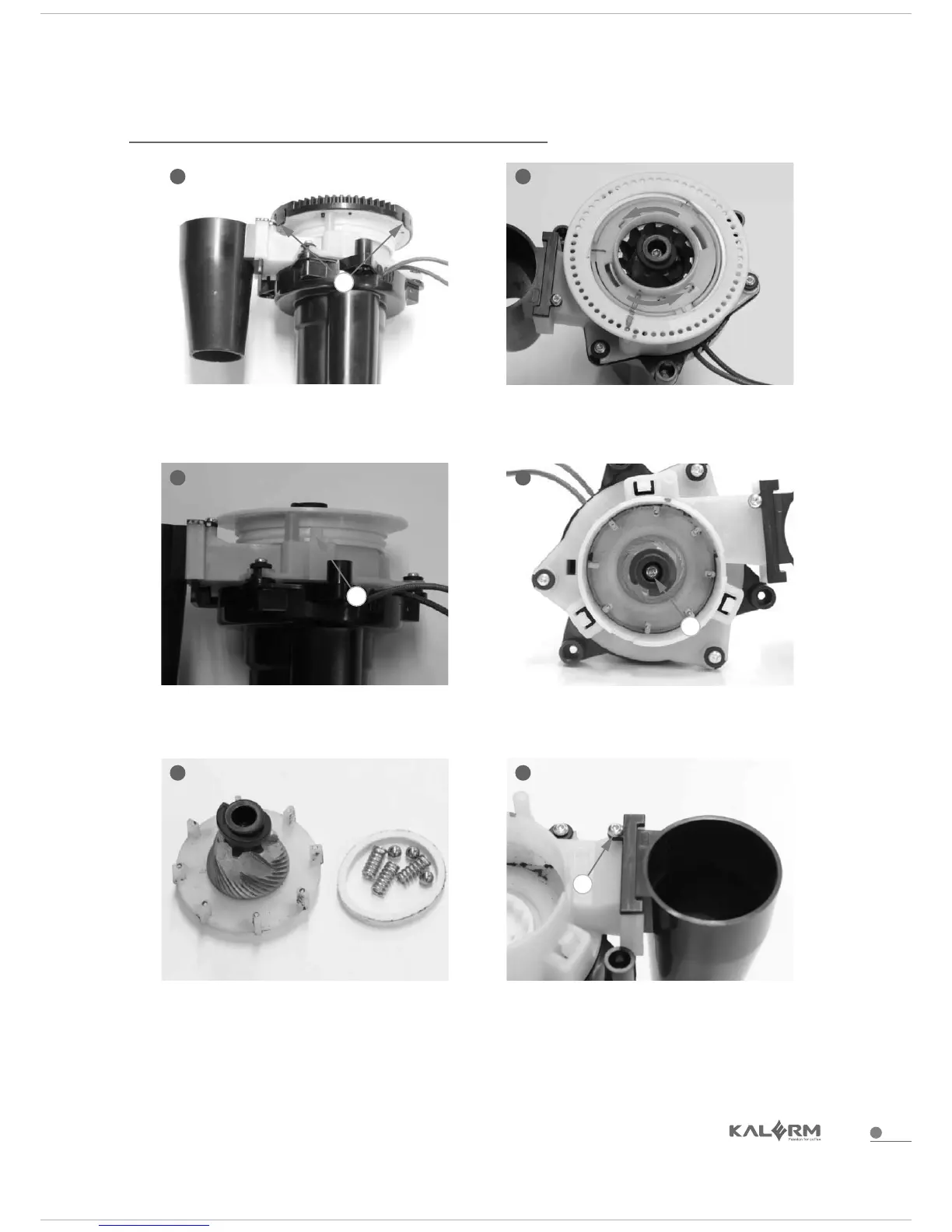

1. Disassemble the 3 hooks from the
grinder adjustment sector and take out
the grinder adjustment sector
2. Rotate the upper burr group
anticlockwise
4.3.3 Grinder group
Repair
3. Disassemble the three hooks from
the motor support for grinder, and
take out the grinder adjustment ring
4. Disassemble 1 middle screw
5. Take out the line pencil and
conical burr group
6. Take out 1 screw from the coffee
powder hopper
