Repair

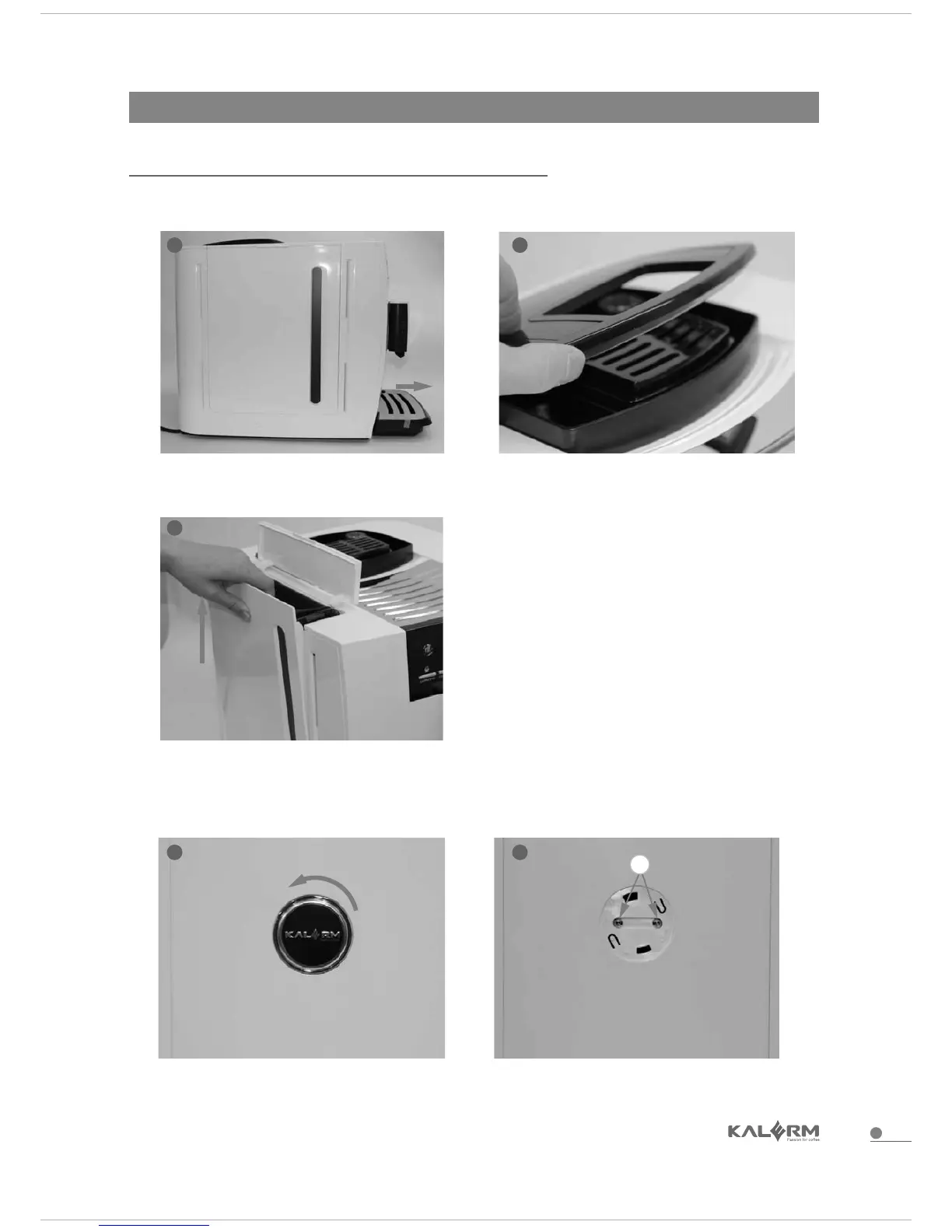

4.2 Disassemble process for components
1. Take out drip tray 2. Take out bean container lid group
4.2.1 Disassemble exterior parts
4.2.1.1 Take out movable parts
3. Take out water tank group
1. Rotate the Logo support according
to the direction of the arrow
2. Dismantle 2 screws from the
bottom of the Logo support
4.2.1.2 Disassemble back cover
