Kalerm KLM1602 - Precautions for Maintenance and Installation; Brew Unit Group

Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
Repair

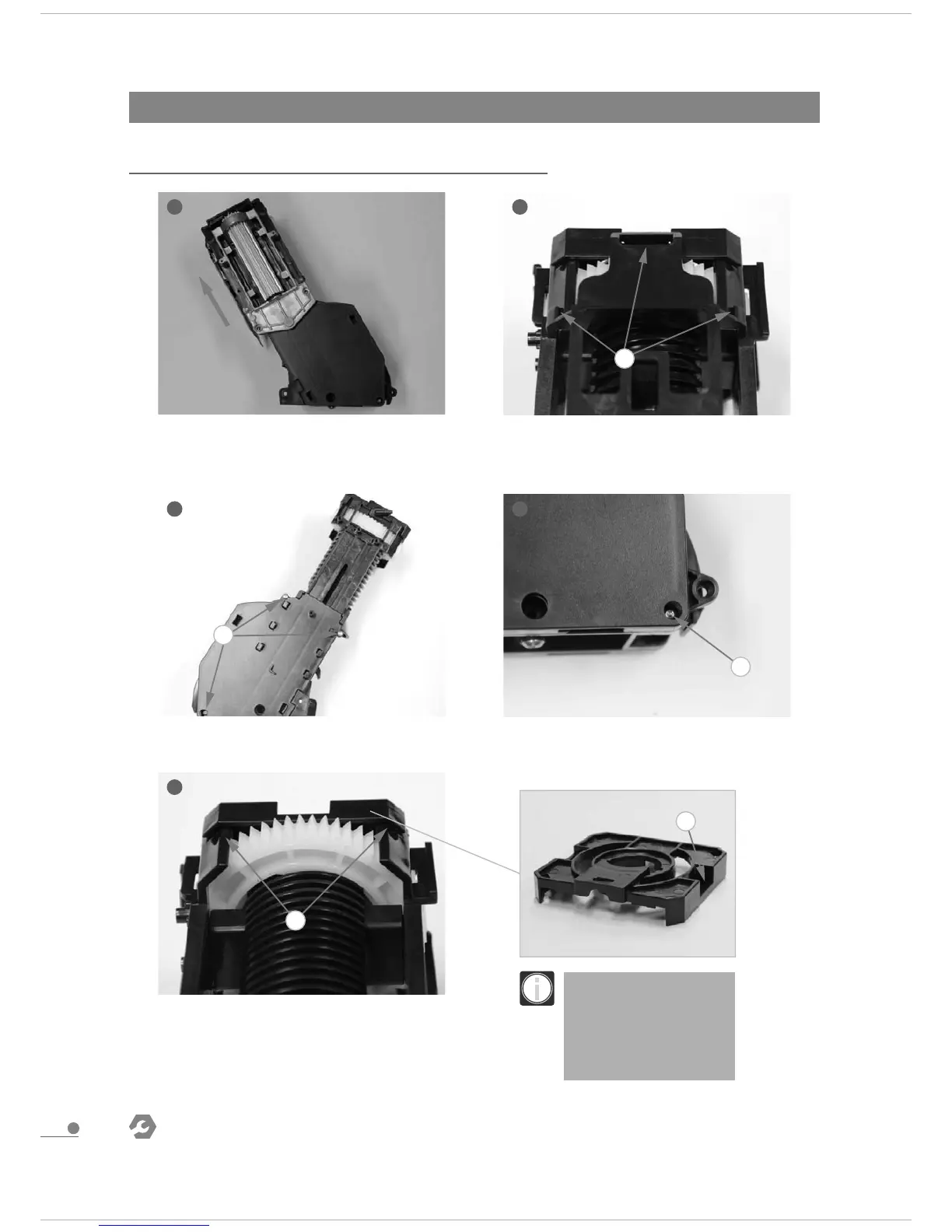

4.3 Precautions for maintenance and installation
1. Disassemble the spool gear group
according to the arrow direction
2. Disassemble the wiper, notice the
hooks showed by the arrow
4.3.1 Brew unit group
1 2
3. Disassemble the 4 screws from the left and right cover
3 3
4. Disassemble 4 hooks from the top
cover of the brew unit，take out top
cover of brew unit
4
1
1
1
1
Note: deeper slot side
should be installed to
the front position of
the brew unit. It should
match the wiper
1
46
