Repair

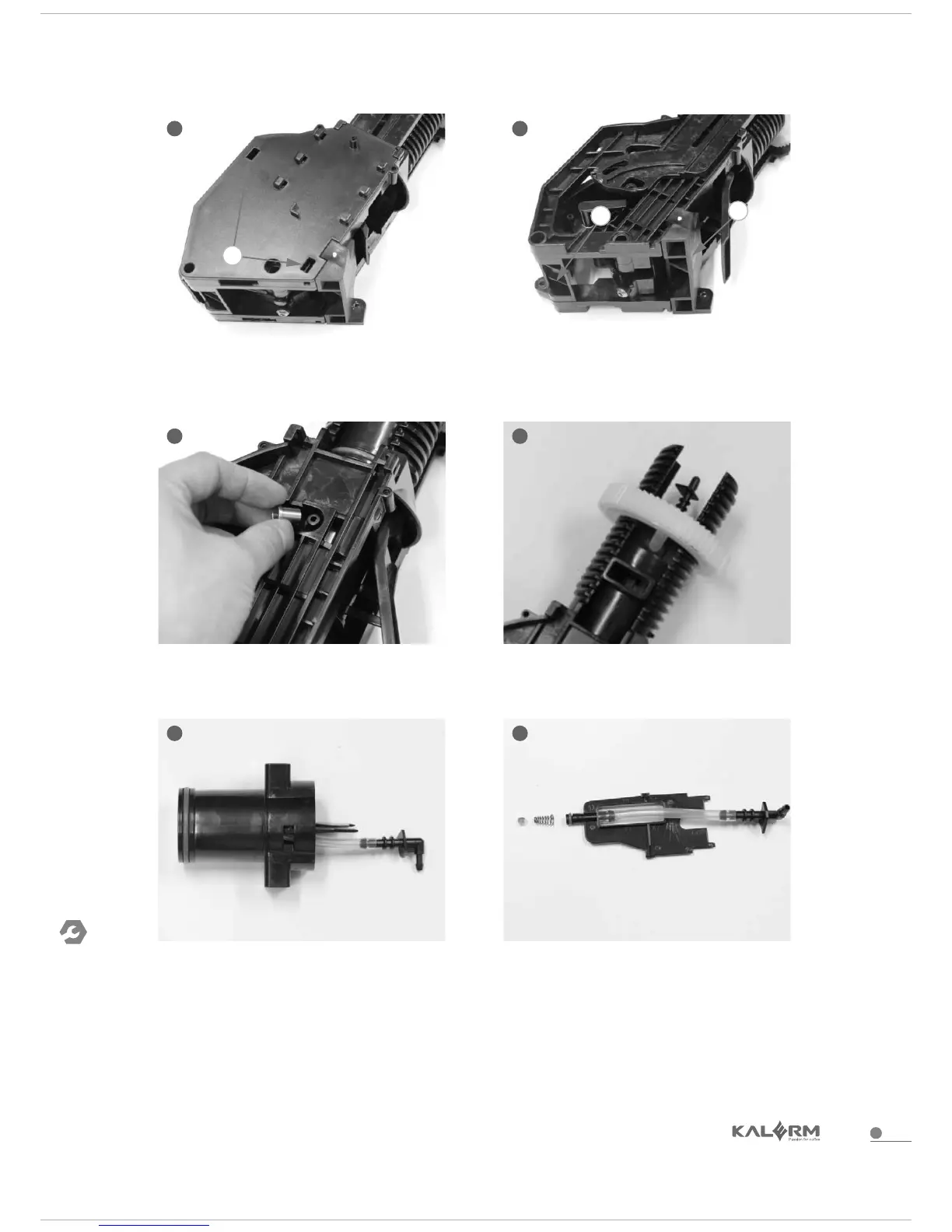

5. Disassemble five hooks at the
back of the left and right cover，
and take out the left and right cover
6. Take out connect part and reset
base
5 6
7. Take out left and right pull plate
and pull plate sleeve
8. Rotate the gear
7 8
9. Take out the contropistone
9
10. Take out the connector, pay
attention to the direction of the
spring.
10
2
1
1
47
Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
