Repair

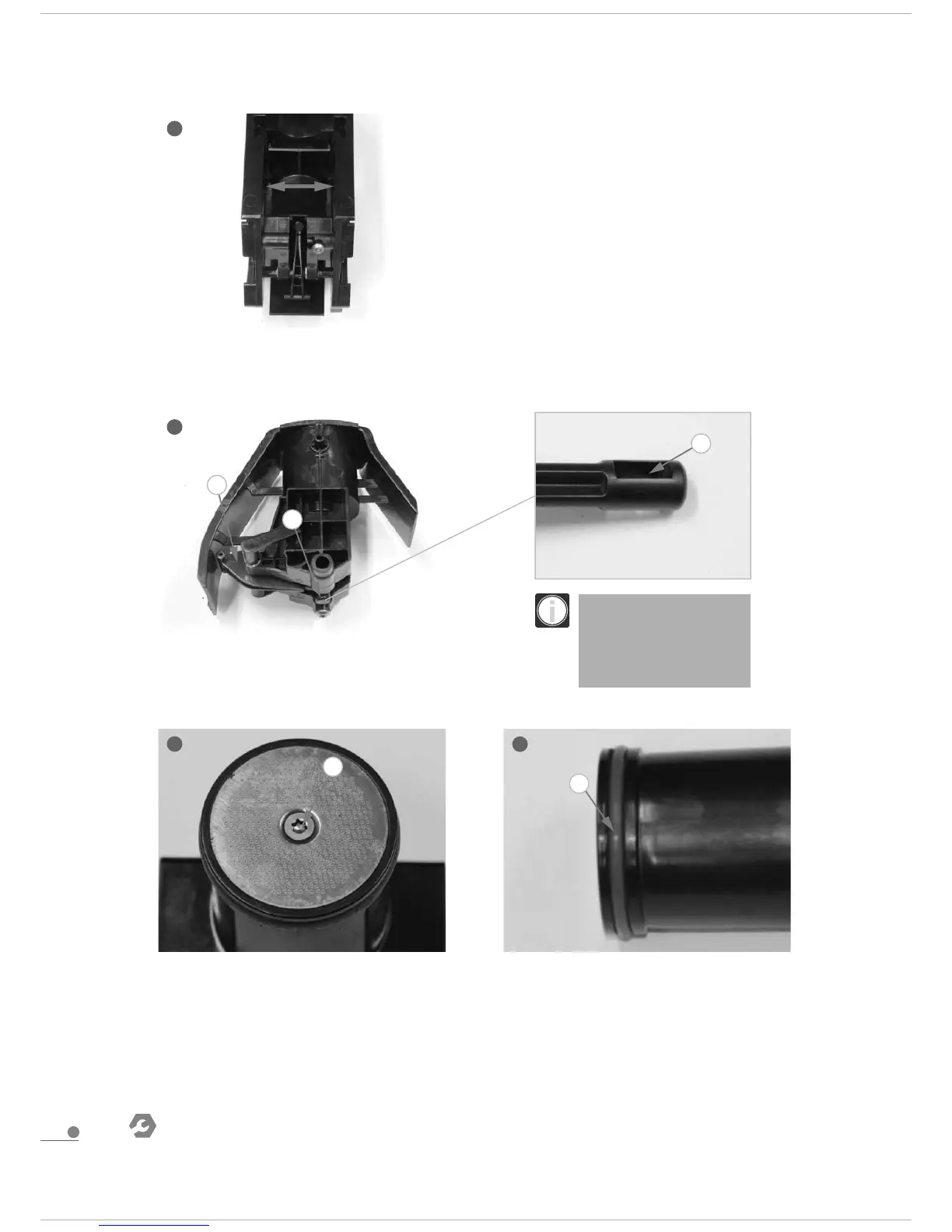

11. Deform brew unit frame with
strength according to the arrow
direction, and take out coffee
brewing group
11
12. Disassemble release link，and
take out piston
12
13. Disassemble the screw from
contropistone, and take out filter
screen
13
14. Disassemble seal from
contropistone
14
Note: The bigger
opening of the piston
should face to the
release link.
1
1
1
1
2
Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
48
To Next Page
