13
1
1
1 2
1
3
NOTE: the location of two
silicone tube, top tube for
coffee, bottom pipe for
water
51
Repair

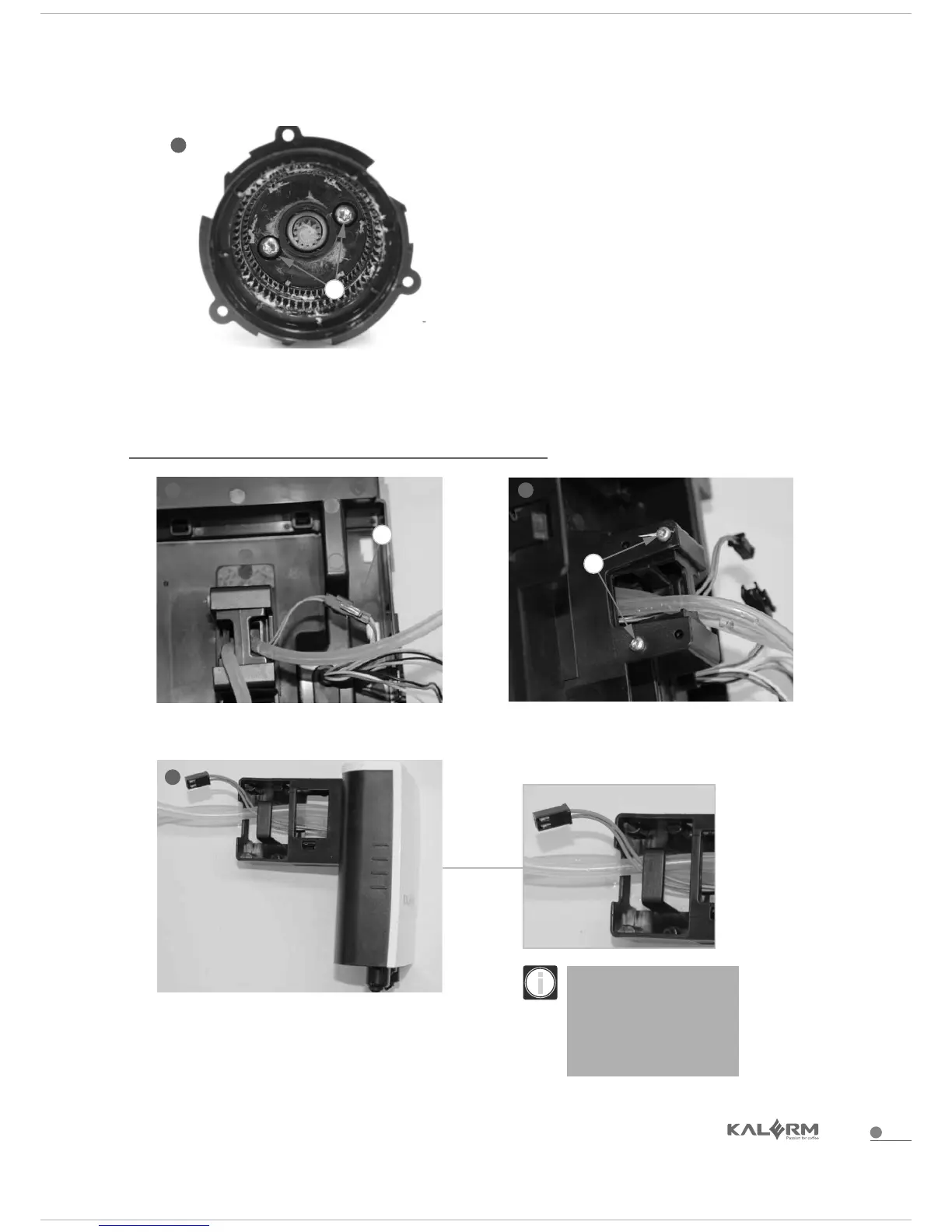

13. Disassemble the 2 screws inside
the gearbox, and take out the
grinder motor
4.3.4 Control panel group
1. Pull out the terminal 2. Disassemble 2pcs screws
3. Remove the coffee outlet group
