4
1
5
1
6 7
1
1
8
1
9
1
1
52
Repair

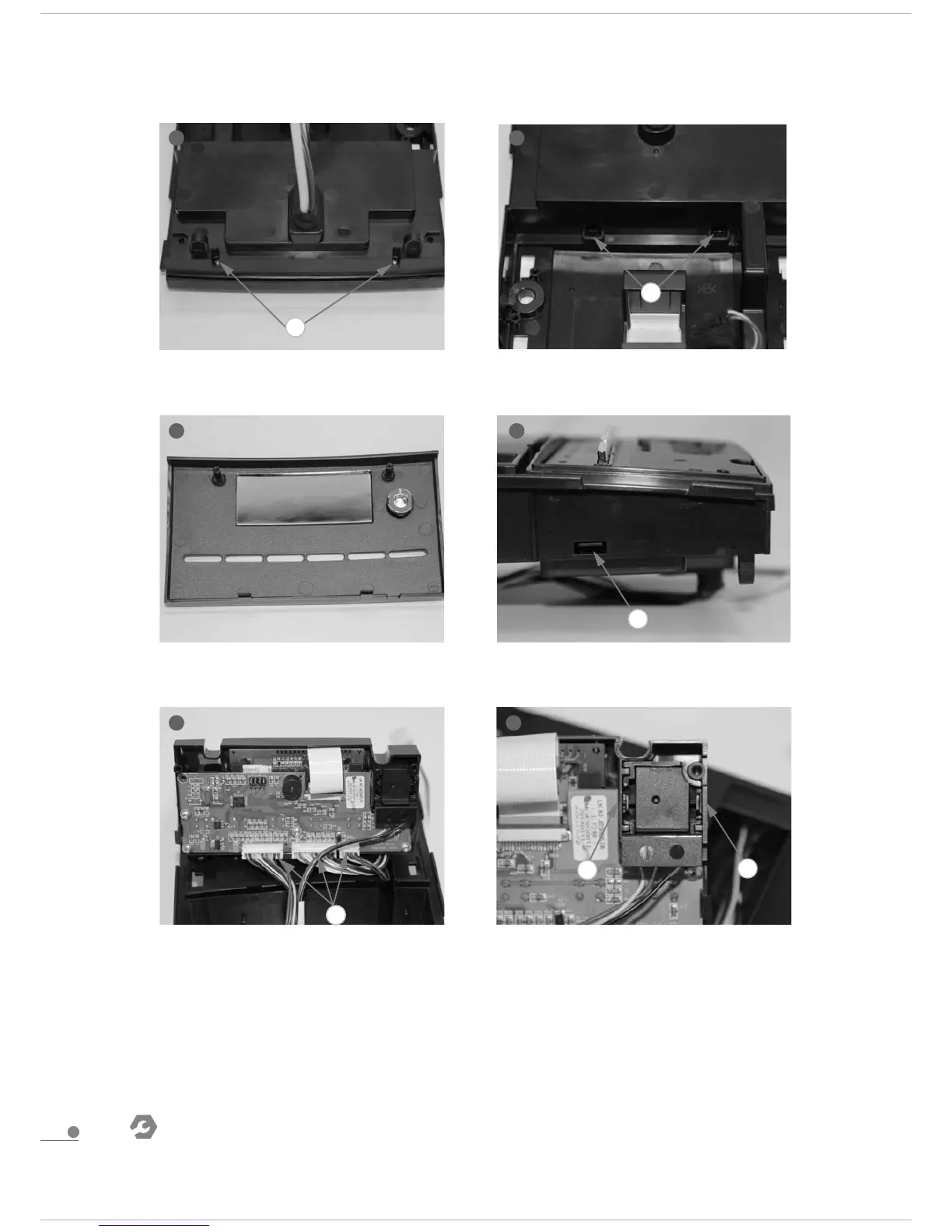

4. Disassemble 2pcs screws 5. Disassemble 2pcs hooks
6. Remove the decorative cover
panel and the power button
7. Disassemble 2pcs hooks on both
sides
8. Remove the HMI,pull out 3pcs
terminals
9. Disassemble 2pcs hooks on both
sides and remove the switch support
Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
