10
1
2
11
1
12 13
53
Repair

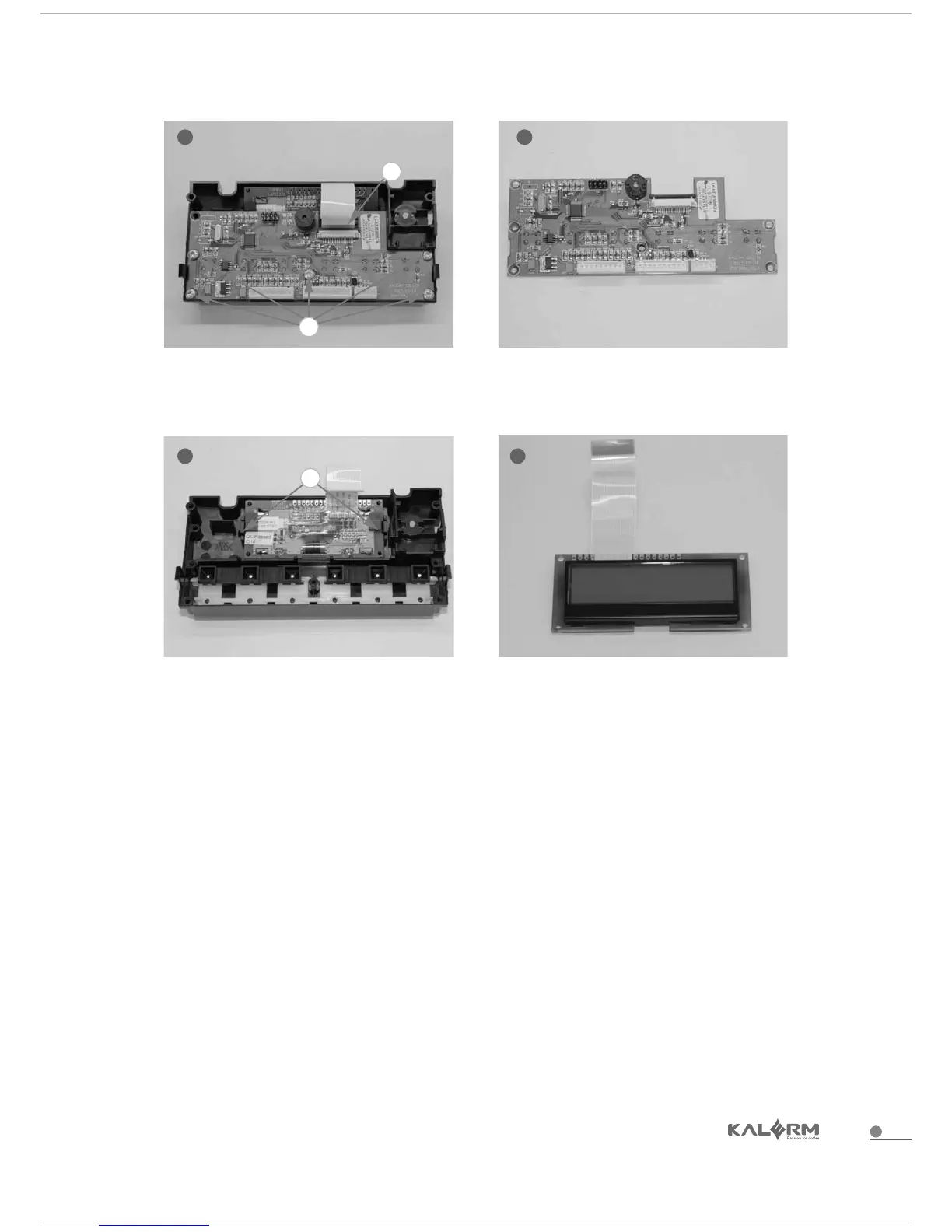

10. Remove the HMI
group,disassemble 5pcs screws,pull
out LCD terminal
11. Remove the HMI
12. Disassemble 2pcs hooks on both
sides
13. Remove the LCD screen
