Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
Repair
4.2.10 Disassemble pump group

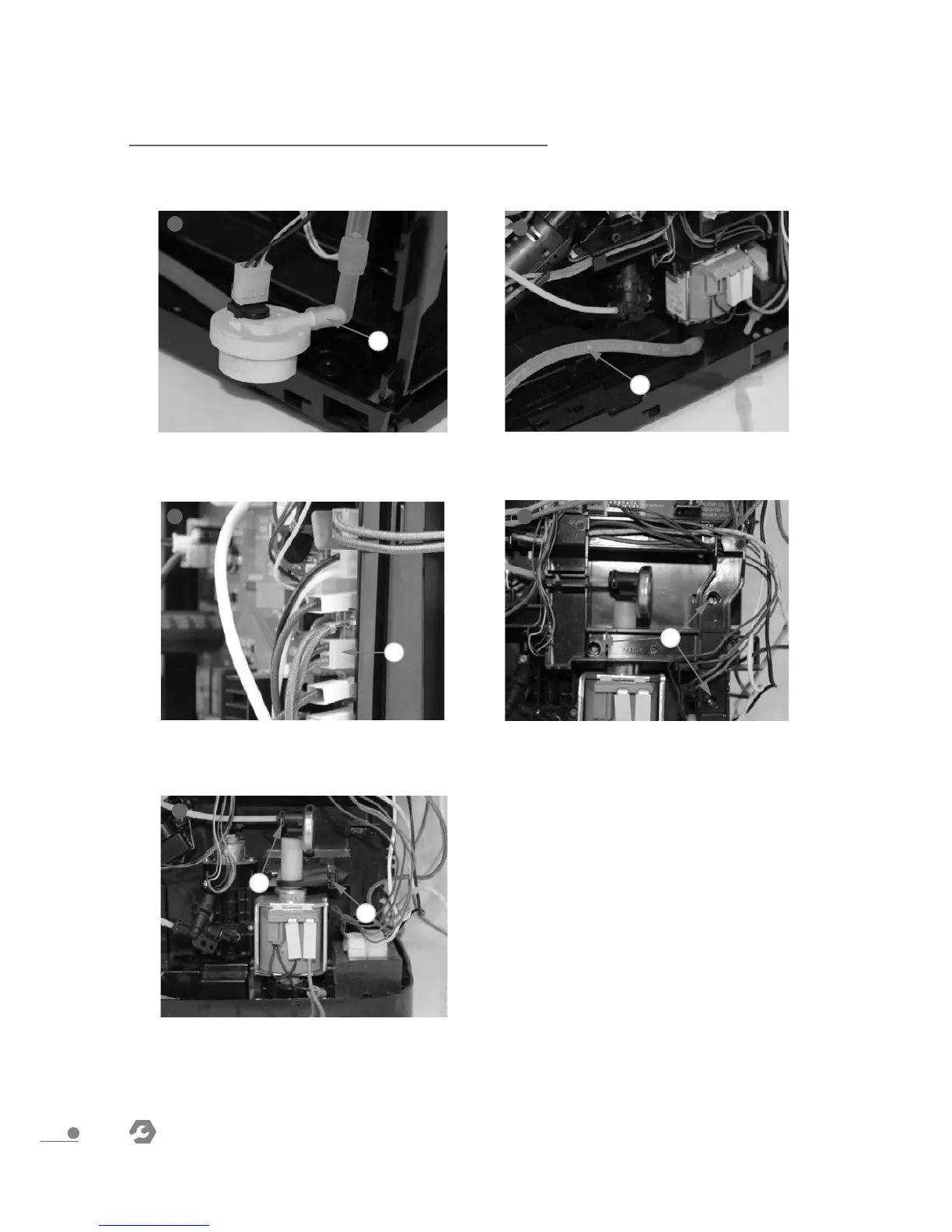

1. Refer to 4.2.1- Disassemble exterior parts of the machine
1. Pull out the flowmeter and pull out
the silicone pip
2. Pull out the silicone pipe
4. Pull out pump terminal on PCBA,
and take it out from the cable rack
5. Take all cables out from the cable
rack,pull out 3pcs screws ,remove the
cable rack
6.Pull out the spring clip and teflon
pipe,remove the pump
