Kalerm KLM1602 - Disassemble Grinder Group; Disassemble Control Panel Group

39
2 3
1
1
2. Disassemble 4 cable racks
2
1
1
1
2
3. Pull out terminal on PCBA which
connected to control panel
3
4. Pull out silicon pipe from the left
side of the machine
1
4
5
1
2

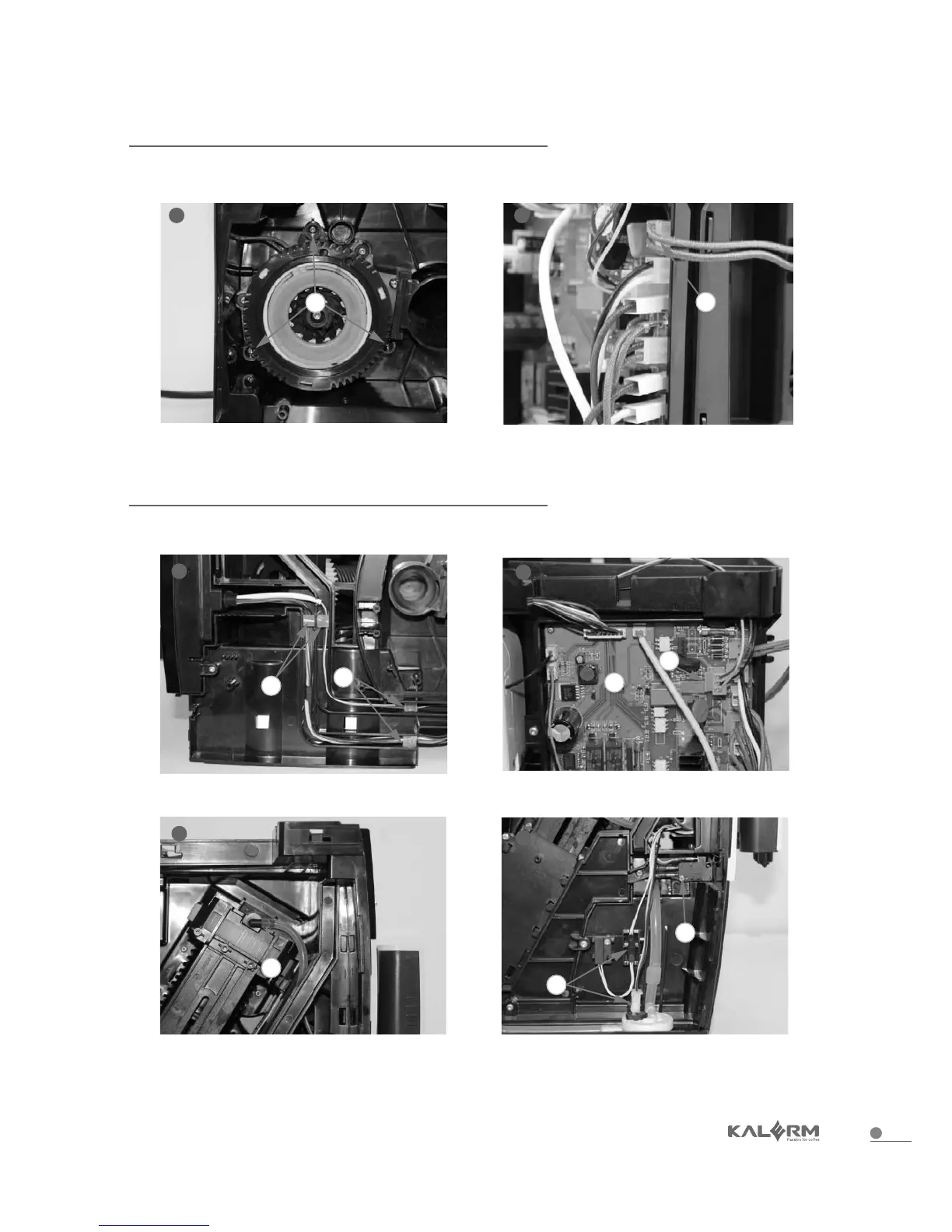

4.2.6 Disassemble grinder group
1. Refer to 4.2.1.1-4.2.1.6-disassemble top cover
2. Disassemble 3 screws 3. Pull out grinder motor terminal from
PCBA and take out grinder group
Repair
4.2.8 Disassemble control panel group
1. Refer to 4.2.1-disassemble exterior parts
5. Remove 1pcs screw and remove
the switch,pull out the tuo terminals
