Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
Repair

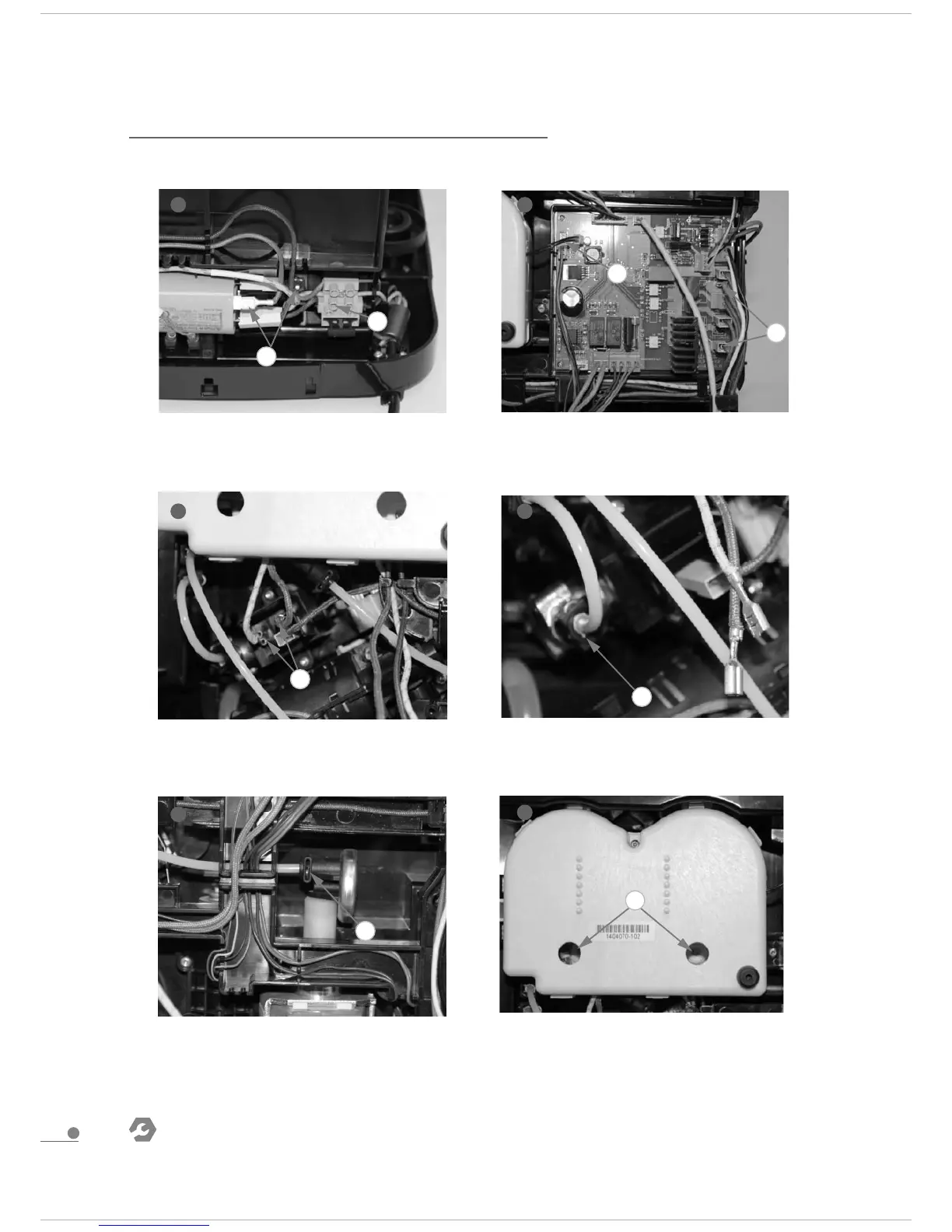

4.2.13 Disassemble thermoblock group
2. Loose screw on the line pencil
connector,pull out the terminal on
filter
3. Pull out all the terminals on PCBA
and take it off cable rack
4. Pull out the terminal on soleniod
valve
5. Pull out the spring clip and teflon
pipe
6. Pull out the spring clip and teflon
pipe
7. Disassemble 2pcs screws
1. Refer to 4.2.1-disassemble exterior parts
