Kalerm KLM1602 - Disassemble PCBA; Disassemble Dispenser Valve 2 W

43
2 3
1
1
Repair

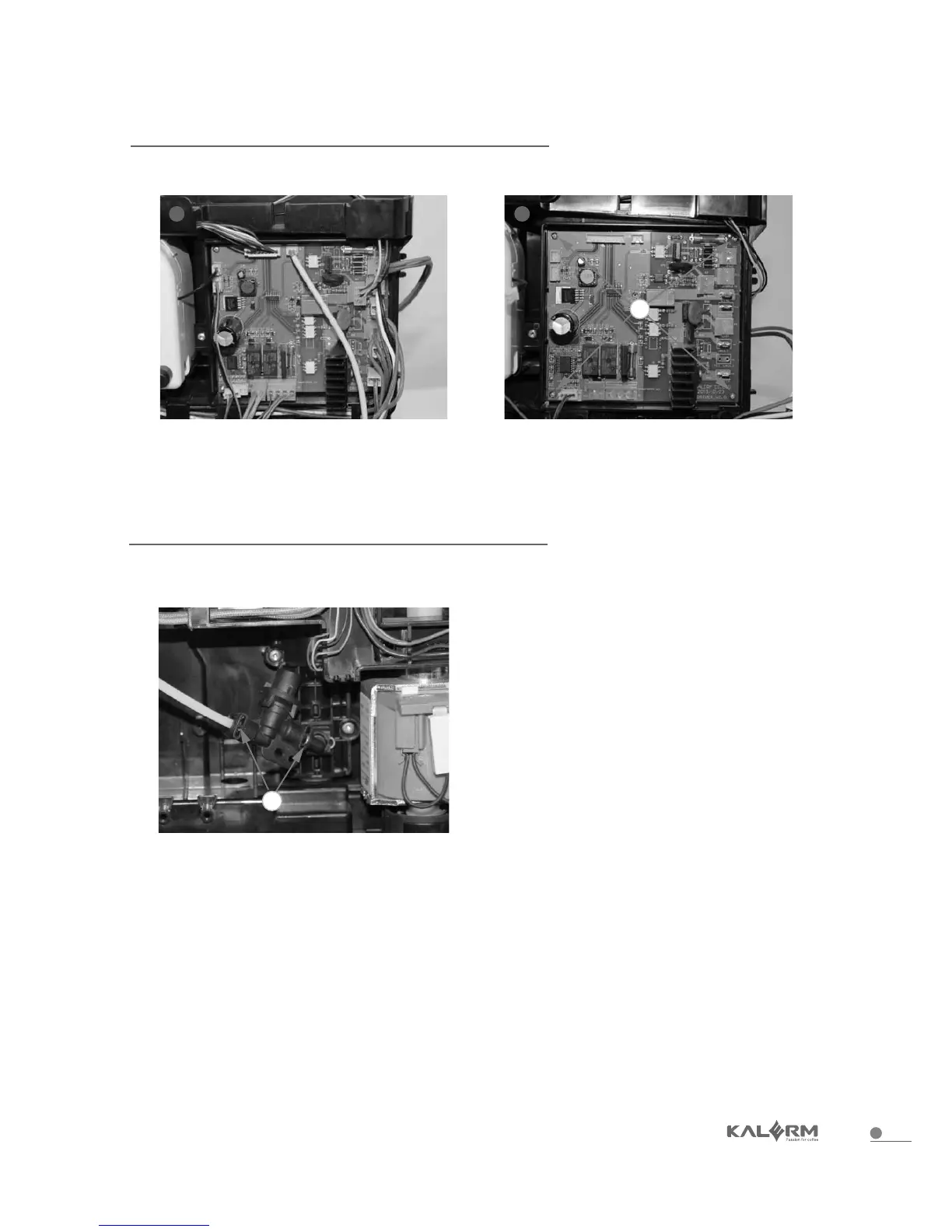

2. Pull out all the terminals on PCBA 3. Disassemble 4 screws on PCBA, and
take out PCBA
1. Refer to 4.2.1.1-4.2.1.4-disassemble right side section
4.2.11 Disassemble PCBA
4.2.12 Disassemble dispenser valve 2W group
1. Refer to4.2.1.1-4.2.1.4-disassemble right side section
2. Pull out 2pcs spring clips and take
out dispenser valve 2W
