59
Repair

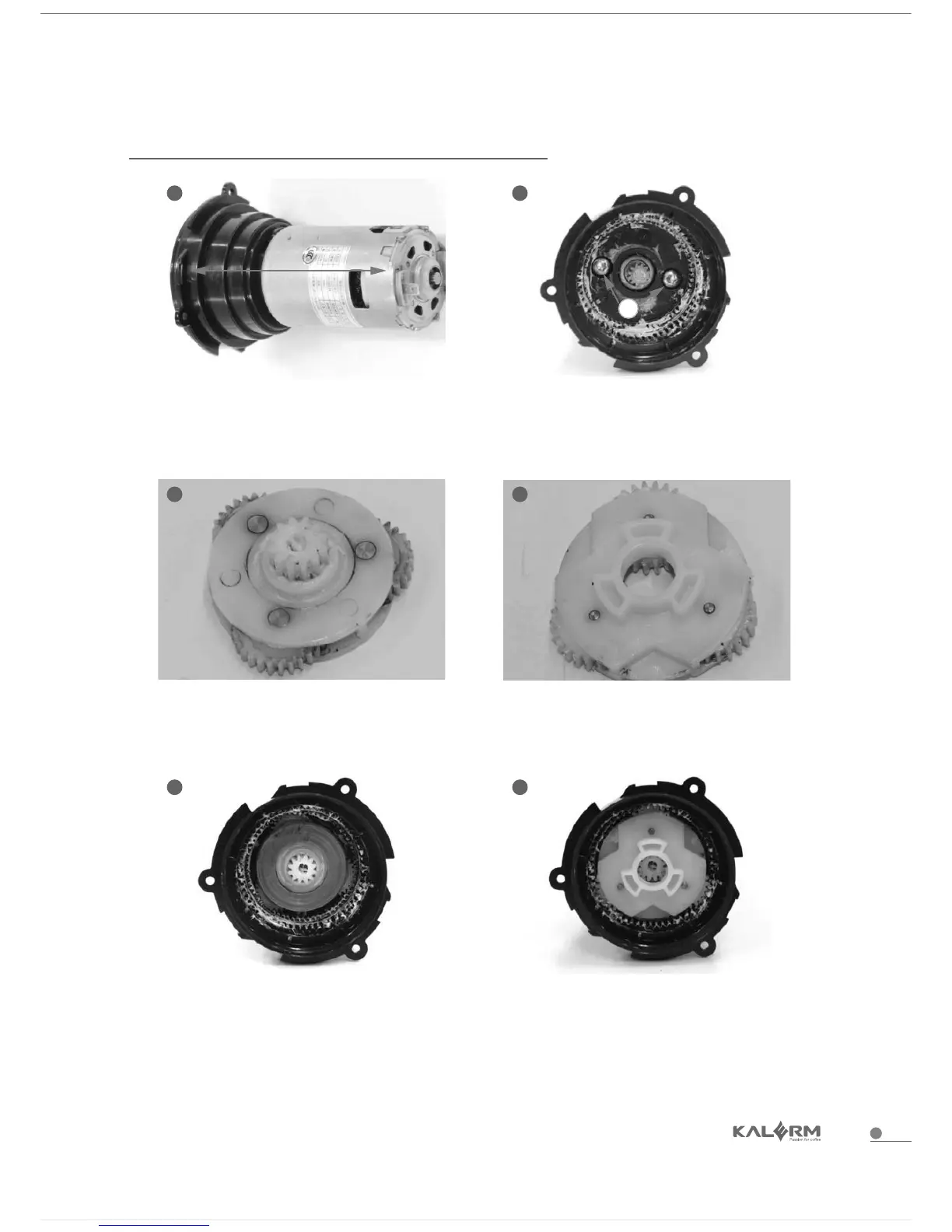

1. Assemble the grinder motor and gearbox together, and screw them tightly. The screw should be
covered with loctite. The teeth of the gearbox should be coated with oil(MI-setral-61B). The red mark
place should correspond to one hole of the gearbox.
1 1
2. Install 3 epicyclic gear A and 3 epicyclic
gear pin A into epicyclic gear support A,
and coat with oil(MI-setral-61B).
3. Install 3 epicyclic gear B and 3 epicyclic
gear pin A into epicyclic gear support B, and
coat with oil(MI-setral-61B).
2 3
Grinder group
1
4. Put the already installed epicyclic gear
frame A into the gearbox, put 1 filler piece
onto epicyclic gear frame A.
5. Put the already installed epicyclic gear
frame B into gearbox.
4 5
