Repair

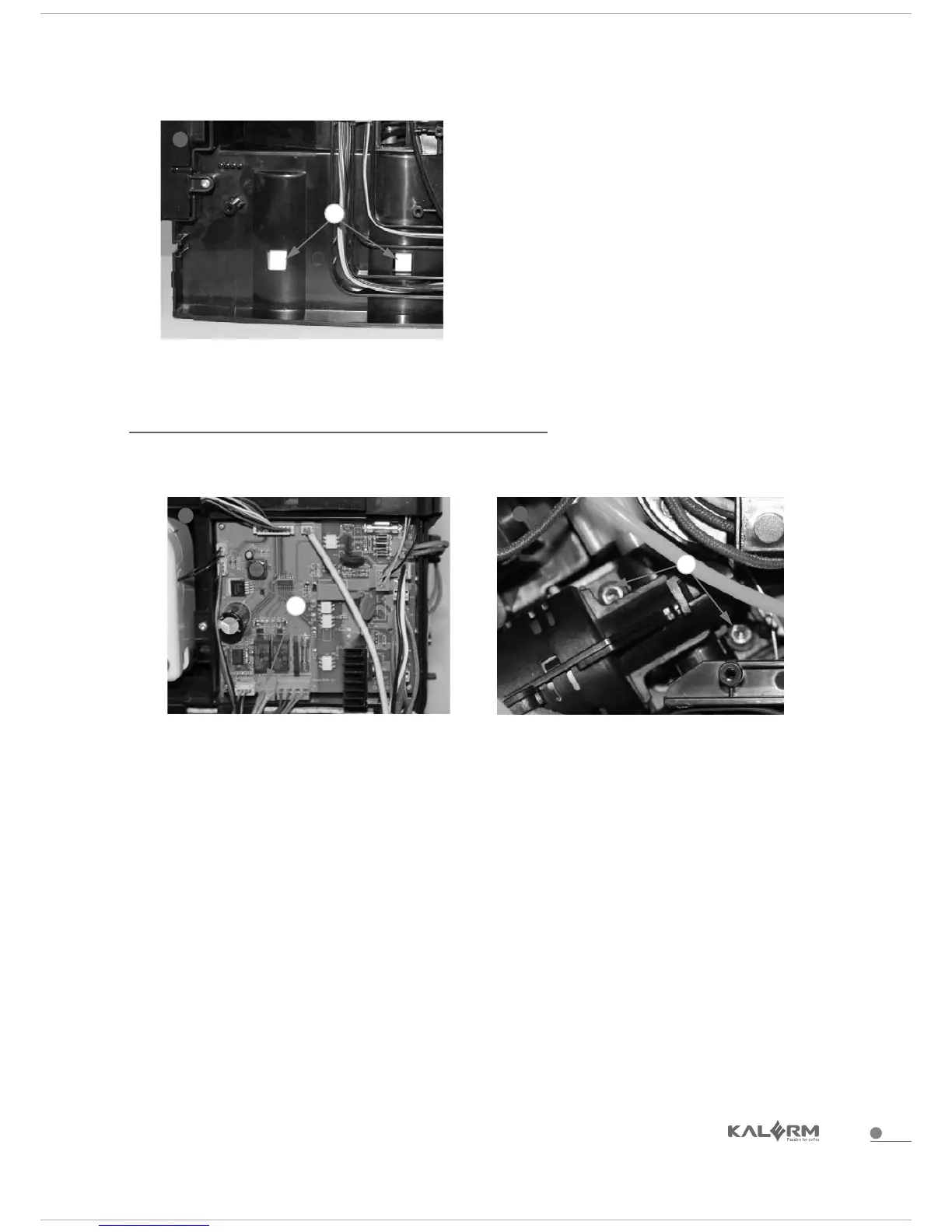

8. Disassemble hooks from the
support and take out thermoblock
4.2.14 Disassemble drive motor group
1. Refer to 4.2.1.1-4.2.1.4-disassemble right side section
2. Pull out the terminals on PCBA
and take it off cable rack
3. Disassemble 2pcs screws ,remove
the drive motor group
To Next Page
