9 10
11 12
1
8
1
1
7
50
Repair

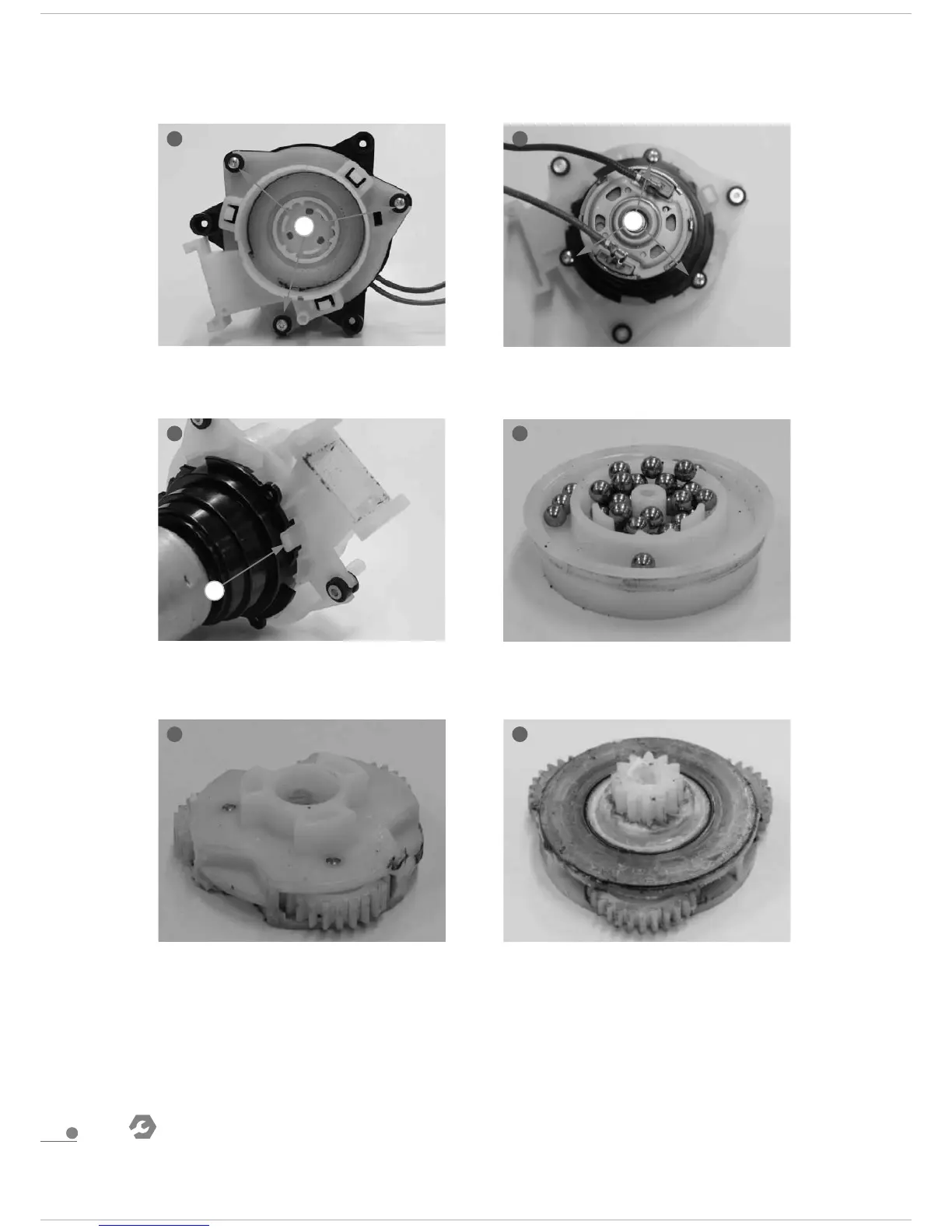

7. Disassemble 3 screws from grinder
support, and take out grinder support
8. Take out 3 screws from the gear
box
9. Take out the 3 hooks from the
gearbox, and then take out the coffee
10. Disassemble steel ball support and
34 pcs steel ball
11. Take out the epicyclic gear
group B
12. Take out filler piece and the
epicyclic gear group A
Service Manual
Intelligent Fresh Ground Coffee Machine
KLM1602
