11 Common electrics
11.3 Batteries
General

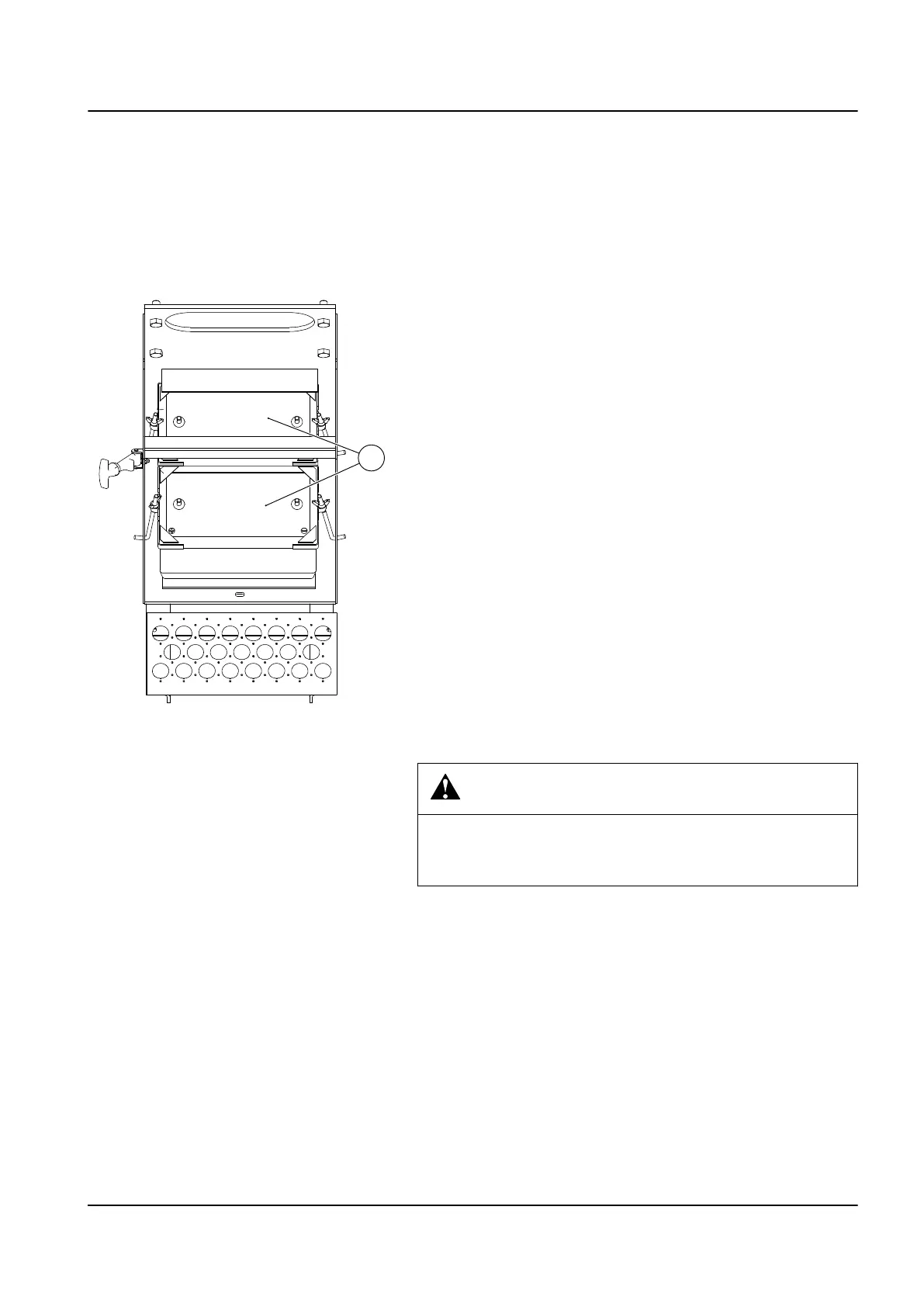

The machine is fitted with two 12V batteries (A) connected in series.
The batteries are located under the steps on the right side.
Examine the starting batteries
WARNING
CHEMICAL BURN HAZARD!
Battery electrolyte is highly corrosive and will cause severe injury if
spilled on the skin.
If electrolyte is spilled on the skin, remove it immediately by washing
with soap and large quantities of water. If electrolyte is spilled in the
eyes, flush immediately with large quantities of water and consult a
doctor.
Do not smoke or use an open flame near the batteries.
While working on the batteries, remove your watch, rings, and other
metal objects that could cause a short circuit. Use insulated tools.
The weight of the battery is 24 kg. Use appropriate lifting equipment
for handling the components.
1 Ensure that the batteries are fastened securely.
2 Clean the batteries externally.
3 Clean battery terminals and cable lugs to remove the oxide
layer, if necessary. Use protective grease on the cable lugs.
11 Common electrics – 11.3 Batteries 3
TL2 Maintenance Manual
591 003 Default
