CROSSTALK XL
RS232 CONVERTER
CROSSTALK-4
REAR VIEW
OF DB9
BAT-12-100A
SOLAR
SH-4GLPPA6902700
LED BOARD
HARNESS
LED BOARD
RED +
BLACK -
RED +
BLUE (TR+)
GREEN (TR-)
RED TO PIN 2
WHITE TO PIN 3
BLACK TO PIN 5
RED +
BLACK -
BLACK -
*BOTTOM CONNECTOR
FOR PUCK ANTENNA IS GPS
TOP CONNECTOR
IS 900MHZ RADIO
**CHECK LOCAL CODES FOR ALL MEASUREMENTS**
DATE:
DATE:
DRAWN BY:
CHECKED BY:
PRORIETARY AND CONFIDENTIAL
The information contained in this drawing is the sole property
of K & K Systems. Any reproduction in part or as a whole
without the written permission of K & K Systems is prohibited.
TITLE:
K & K SYSTEMS
DWG. NO.
Office: (888) 414-3003
www.k-ksystems.com
Scale:
---
Size:
8.5 X 11
Sheet:
1 of 1
Revision:
Timothy P.
FRANK A.
WIRELESS MESSAGE BOARD
11-3-20
11-3-20

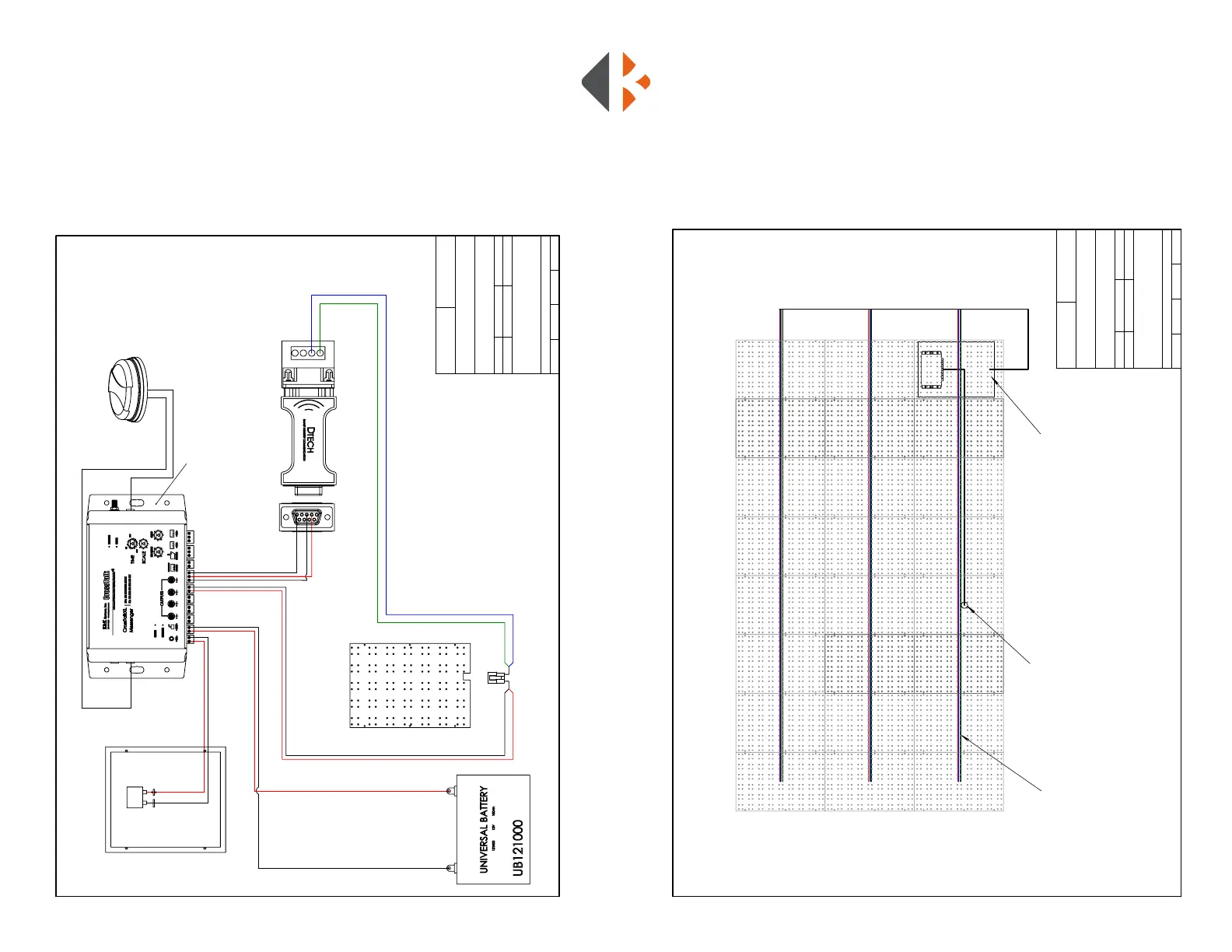

CROSSTALK XL
TRAILER MOUNT: WIRELESS
WIRING DIAGRAMS
MESSAGE SIGN
REFER TO
WIRELESS
DRAWING
FRONT VIEW
WIRES ARE BEHIND
LED BOARD
THROUGH WALL
CABLE PANEL
*CABLE COMING
FROM BATTERY BOX
**CHECK LOCAL CODES FOR ALL MEASUREMENTS**
DATE:
DATE:
DRAWN BY:
CHECKED BY:
PRORIETARY AND CONFIDENTIAL
The information contained in this drawing is the sole property
of K & K Systems. Any reproduction in part or as a whole
without the written permission of K & K Systems is prohibited.
TITLE:
K & K SYSTEMS
DWG. NO.
Office: (888) 414-3003
www.k-ksystems.com
Scale:
---
Size:
8.5 X 11
Sheet:
1 of 1
Revision:
Timothy P.
FRANK A.
LED BOARD HARNESS
3L WIRELESS
11-2-20
11-2-20
