Kane 358 - PRESSURE & TEMPERATURE TESTING; TEMPERATURE & PRESSURE DISPLAY; VIEWING, SENDING & PRINTING

23KANE 358 MANUAL
Use T1 connection for flow
temperature sensor
Use T2 connection for return
temperature sensor
Real time temperature difference
Real time pressure reading
PRESSURE & TEMPERATURE TESTING
WARNING
Never attempt to take a pressure reading without knowing the
maximum pressure present. This analyser’s pressure transducer is
rated at 80 mbar with a maximum over range of 400 mbar.
Rotate the dial to Prs/Temp and use the black connectors &
manometer hose to connect to P1 for single pressure or P1 & P2 for
dierential pressure.
VIEWING, SENDING & PRINTING
Press button to send a full Pressure & Temperature report either
to the optional KANE IRP-2 printer or the App.
Press and hold button for 2 seconds to log a pressure and
temperature report - See PRINTING to print stored reports.
Status bar

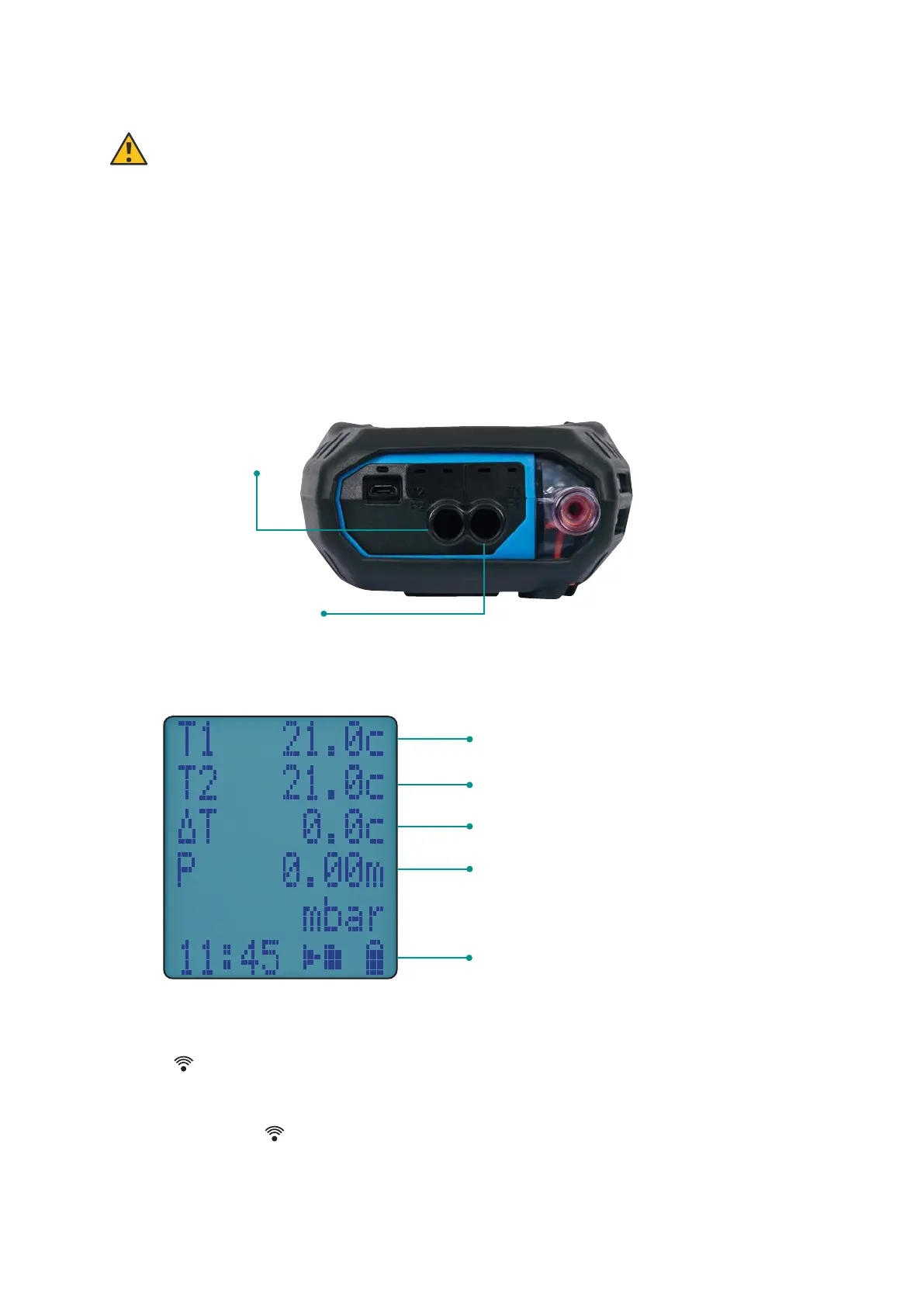

TEMPERATURE & PRESSURE DISPLAY
Pressure
connection P1
Pressure
connection P2
– Differential
