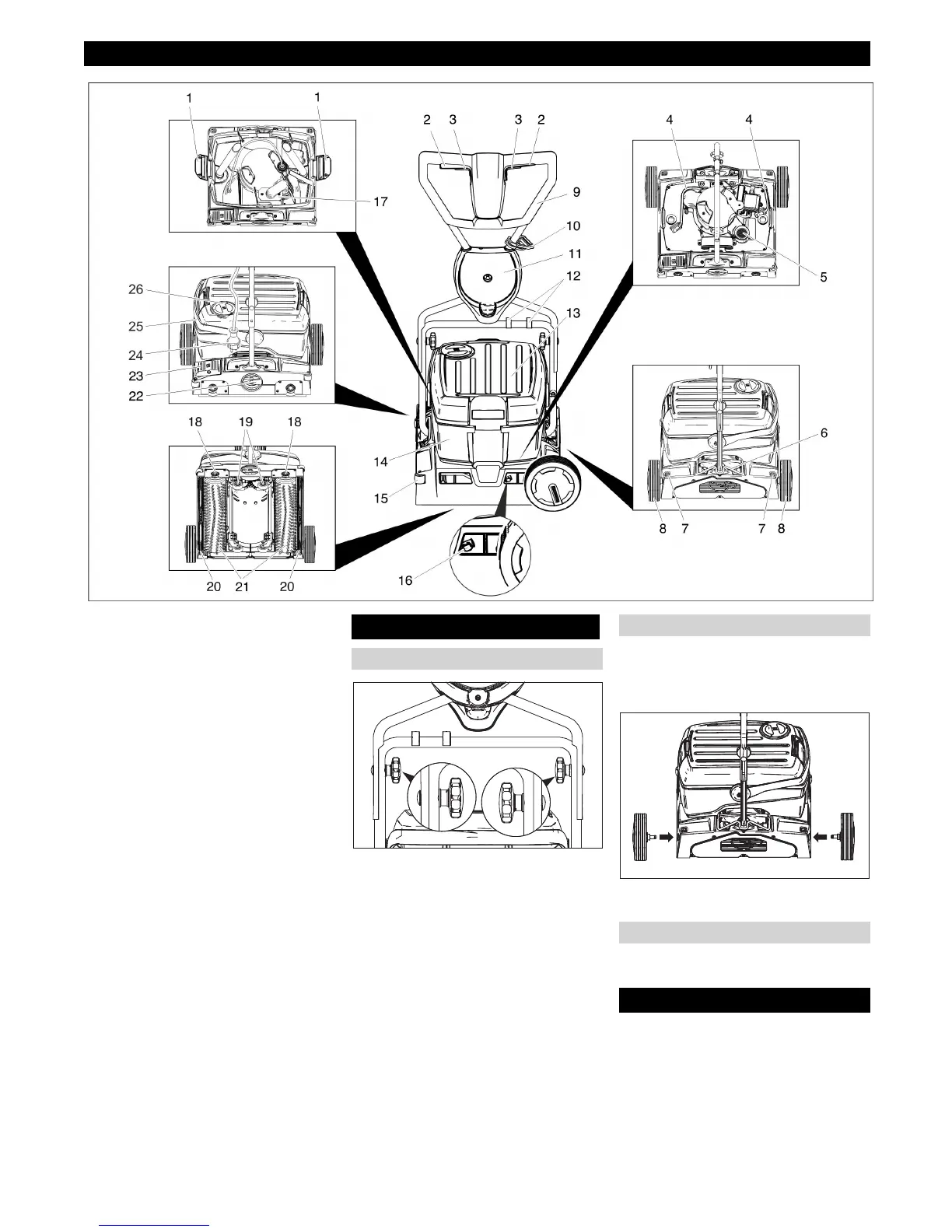

Kärcher BR 40/10 C Adv User Manual

- 2
1 Lock for fresh water reservoir
2 Switch for brush drive
3 Switch for detergent solution
4 Hose for detergent solution
5 Lint sieve (suction)
6 Lock of pushing handle
7 Release button for the transport wheel
8 Transport wheel *
9 Push handle
10 Strain relief clamp
11 Support of the transport wheel *
12 Clip
13 Fresh water tank
14 Dirt water reservoir
15 Scraper roller
16 Push-button for vacuum bar change
17 Float
18 Button for brush change
19 Chassis
20 Vacuum bar
21 Brushing rollers
22 Rotating handle for brush contact pres-
sure
23 Pedal to lower vacuum bar
24 Mains plug
25 Carrying handle for wastewater reser-
voir
26 Fresh water tank cover
* not included in the delivery with BR 40/10
C Classic
 Slide the upper slider half onto the low-
er slider half.
Caution
Risk of damage. Do not pinch the cable
during the installation.
 Align the borings (2 possible height ad-
justments).
 Connect the slider halves to the lock
screws, discs and star grips.
 Fasten the cable to the slider using
clips.
With the BR 40/10 C Classic, the transport
wheels are not included in the delivery. An
attachment kit with transport wheels is list-
ed in the chapter "Accessories".
 Insert the transport wheel axles into the
borings on the appliance and lock them.
The brushes must be installed before the
initial operation (see "Maintenance works").
Note
To take the brush drive out of operation, im-
mediately release brush drive switch.
Operating elements
Before Commissioning
Installing the pushing handle
Installing the transport wheels
Installing the Brushes
Operation
11EN

Kärcher BR 40/10 C Adv Specifications

General

AC input voltage	230 V
AC input frequency	60 Hz
Maximum input power	2300 W
Maximum area performance	400 m²/h
Fresh water tank capacity	10 L
Brush rotation speed (min)	1100 RPM
Practical area performance	300 m²/h
Brush contact pressure (max)	200 g/cm²
Brush contact pressure (min)	100 g/cm²

Weight and Dimensions

Depth	470 mm
Width	520 mm
Height	380 mm
Weight	30000 g
