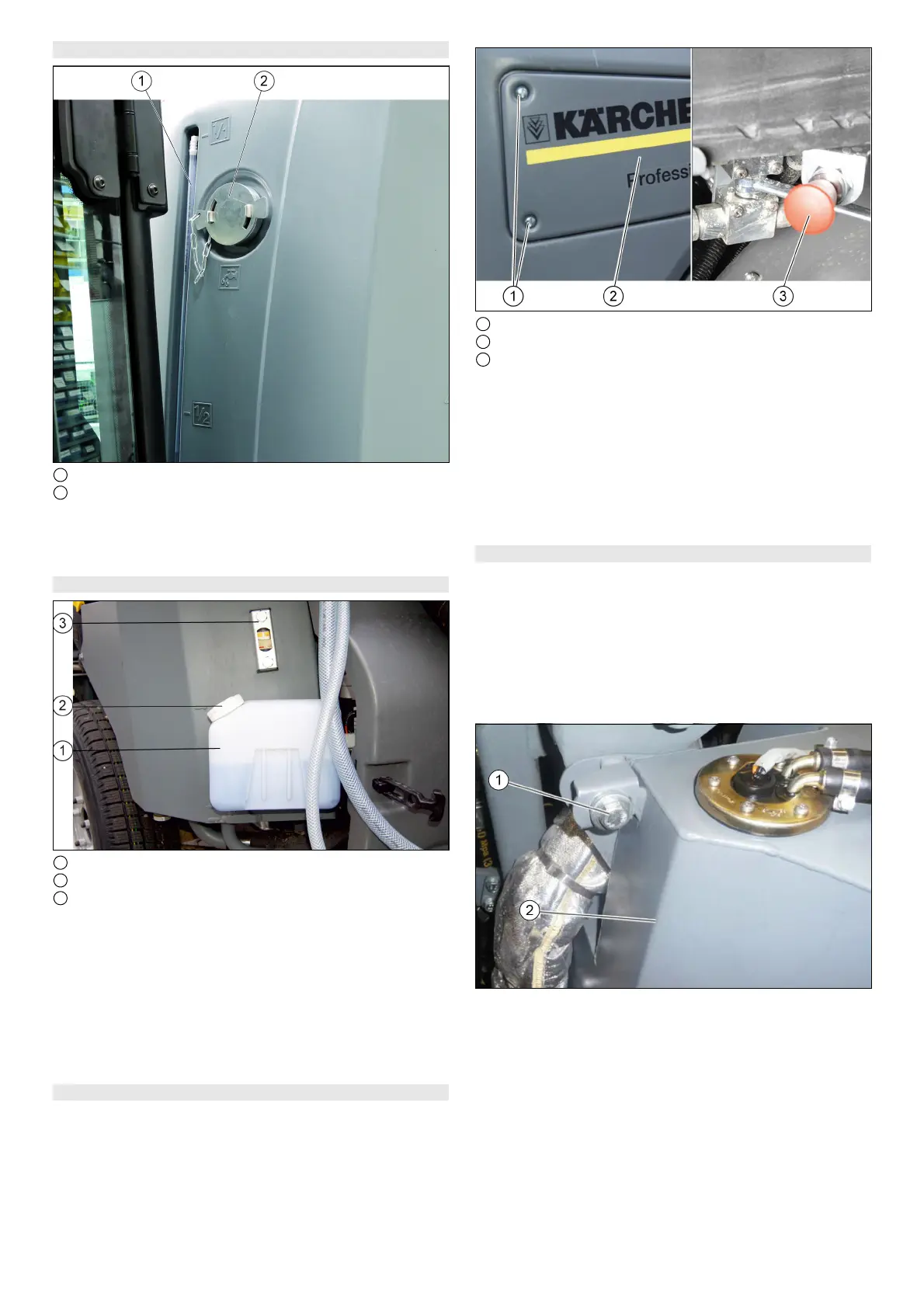

Filling the water reservoir
1 Filling level display
2 Filling nozzle
1. Open the lock of the filling nozzle.
2. Attach the filling hose to the filling nozzle.
3. Fill the water reservoir.
4. Remove the filling hose and close the filling nozzle lock.
Filling the wiping water container
1 Wiping water container
2 Cover
3 Hydraulic fluid reservoir filling level display
Note
Adhere to the manufacturer information for the wiping water and
antifreeze.
1. Raise the attachment frame.
2. Unlock and remove the side panels.
3. Remove the lid from the wiping water container.
4. Fill with wiping water.
a Also add antifreeze in the case of potential frost.
5. Fit the lid on the wiping water container.
6. Attach the side panels again.
Checking the engine oil level
몇CAUTION
Danger of burns
Do not touch any hot surfaces such as engines, motors or gear-
boxes.
1 Screws
2 Cover
3 Oil dipstick
1. Park the vehicle on a level surface.
2. Unscrew the screws.
3. Remove the cover.
4. Pull out the oil dipstick.
5. Wipe the oil dipstick and insert it.
6. Pull out the oil dipstick.
7. Measure the oil level using the oil dipstick.
The oil level must lie between the "MIN" and "MAX" markings.
Top up with engine oil if the oil level is below the "MIN" mark-
ing.
Topping up the engine oil
몇 CAUTION
Danger of burns
Do not touch any hot surfaces such as engines, motors or gear-
boxes.
몇 CAUTION
Risk of damage
An excessive high oil level leads to engine damage.
If the oil is above the "MAX" marking, drain oil until reaching the
correct oil level.
(1)Fuel tank fastener
(2)Fuel tank
1. Remove the left-hand side motor cladding.
2. Unscrew the fuel tank fastener screw and pivot the fuel tank
outwards.
