Operating Instructions KBL 3500

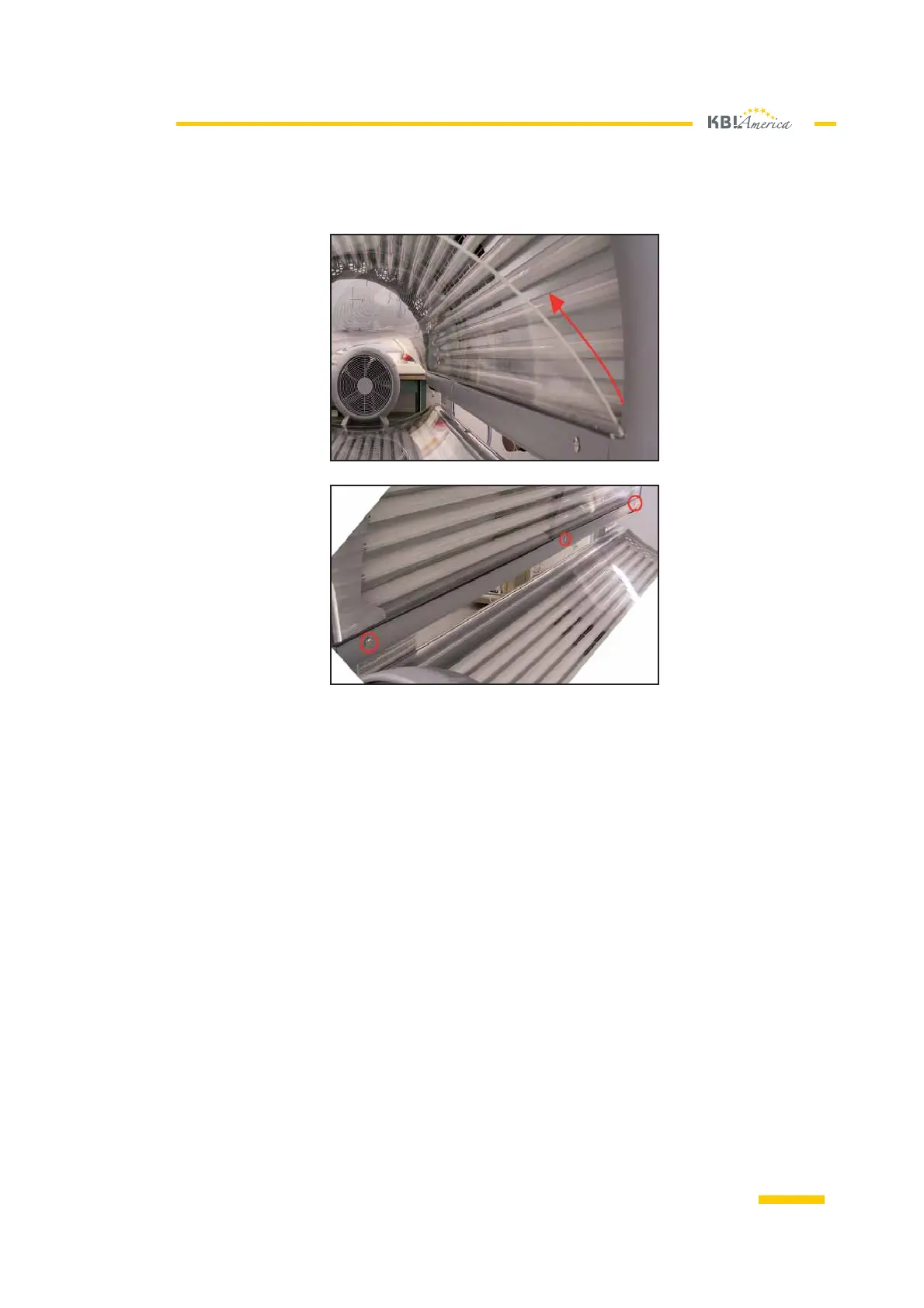

Fold the pane down slightly and pull it out towards the front. If necessary,
you can also undo the 3 screws at the lower edge and fold the cover
down.
Assembly is performed in reverse order. Pay special attention to the
correct placement of the new pane in the frame when inserting it.
The quick-release fasteners of the pane are screwed down
as follows: Bring the screw slot into a horizontal position with
a screwdriver and press against it until the lock catches.
Clean the outer surface.
4.
5.
6.
7.
